Kirchhoff's voltage law (KVL) is Voltage in equal voltage out Voltage goes from high to low None of the others Voltage goes from low to high Voltages around any loop balance
Added by Carol J.
Close
Step 1
Kirchhoff's voltage law (KVL) states that the sum of voltages around any closed loop in a circuit is equal to zero. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 89 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

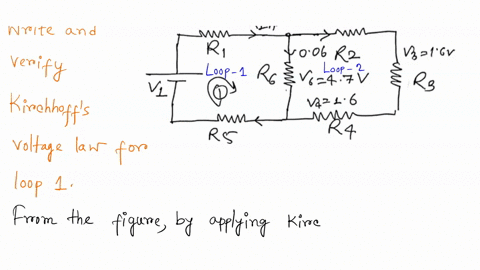

Measured Voltages and Currents All voltages are given in absolute values (while writing Kirchhoff's rules you must determine correct signs! ) 1. Write and verify Kirchhoff's voltage law for loop 1 2. Write and verify Kirchhoff's voltage law for loop 2 3. Write and verify Kirchhoff's current law
Sri K.
Kirchhoff's Current Law - states that the current entering a point in a circuit is equal to the summation of the currents exiting. Kirchhoff's Voltage Law - states that the summation of all voltage drops in a closed loop must equal to zero which is a result of the electrostatic field being conservative. (Conventional) current flowing through the cell has a positive voltage (gains energy). Current going through a resistor has a negative voltage (loses energy). Find all the currents and voltages across each resistor and cell in the following circuits;
