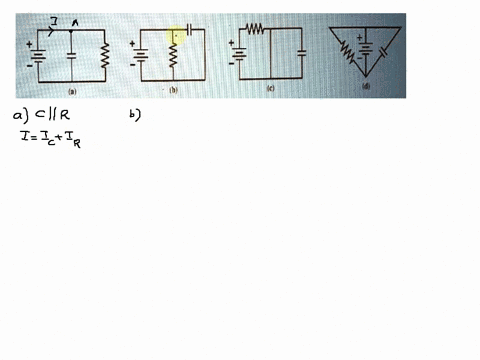

Hi, given the following circuits and we have to identify which of these circuits are same.
00:07
So let us start with a describing the circuits in word.
00:13
So in a we can see that the capacitor and the resistor is parallelly connected to the battery.
00:20
So we can write the capacitor is parallel to resistor.
00:26
And also if we analyze the current flow through the circuit, if i is the current flowing through the circuit.
00:36
Function a, it will split to the current through the resistor and current through the capacitor.
00:42
So we can write the total current flowing to the circuit is equal to current flowing through the capacitor plus current flowing through the resistor.
00:50
Coming to circuit b, in this circuit as well, the resistance is connected parallelly to the capacitor.
00:59
So resistance is in parallel to the capacitor.
01:02
Here also if we analyze the current flow i at this junction a it will split to current flowing through capacitor and through resistor.
01:13
So we can write the total current i is equal to current through capacitor plus current through resistor.
01:22
Coming to circuit c...
