Question

Jeremy Higgins · Accepted Answer

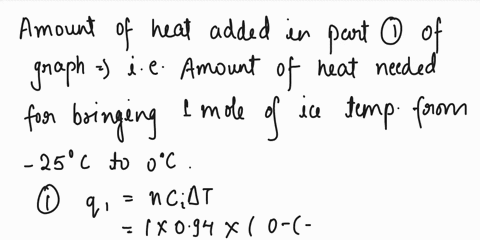

1. Initially, the solid is heated until it reaches its melting point. During this phase, the tem

Question

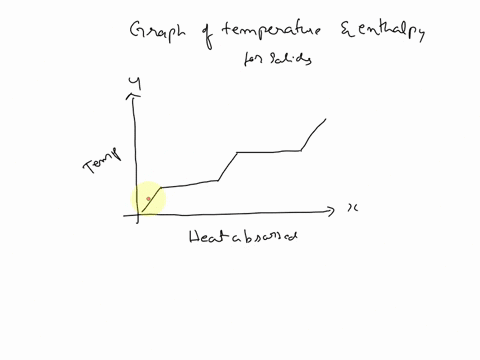

Make a plot of the heat transfer and temperature change for the system described in Question 5. Plot the temperature on the y-axis and the heat added on the x-axis. Label the parts of the graph (solid melts, liquid is heated, etc.). Your graph will resemble Figure 11.39 in Tro, Fridgen, and Shaw.
