No5: Calculate for each point the normal and shearing stresses acting on the indicated inclined

Question

Adi S · Answer

In the question it is given that, given that normal, normal stress on the vertical plane, on the

Adi S · Answer

In the question it is given that, given that normal, normal stress on the vertical plane, on the

Chai Santi · Answer

In this problem, we have to calculate the normal stress and the shear stress acting in the AB pl

Adi S · Answer

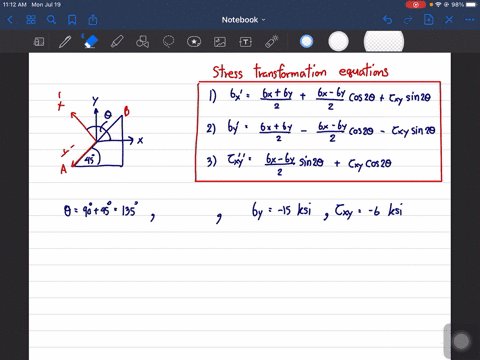

In this question we have to find the normal stress acting on plane AV. Now we have the given ele

Chai Santi · Answer

In this question, they want us to determine the normal stress and the sheer stress on the AB pla

No5: Calculate for each point the normal and shearing stresses acting on the indicated inclined plane. y 60 MPa 50 MPa 20° 40 MPa x y 150 MPa 15 MPa 25° 90 MPa x
