Hey, welcome to another numerade video.
00:07
This video is about the structure basically of a muscle fiber.
00:15
More specifically, the structure of a sarcomere, which will explain exactly what that is.
00:21
And it's important to understand the structure so that you can understand how the muscle works.
00:28
So this will be the first step in really grasping how muscles do their jobs.
00:34
A couple of terms, when we say muscle fiber, we're talking about one cell.
00:41
One muscle cell is called a muscle fiber.
00:45
And it has all the parts that you would expect a cell to have.
00:51
One big difference is it has multiple nuclei.
00:55
There's not just one nucleus in a muscle cell, but many.
01:00
And then that cell, that fiber is made up of smaller parts.
01:05
Called myofibrils.
01:09
Myofibrils are made of two types of filamentous proteins, actin, the thin filament, which i represented here in red, and myosin, the thicker filament, which i'll use green for.
01:24
So muscle fiber, one cell, myofibril, smaller part of the muscle cell made up of two proteins, actin and myosin.
01:33
They overlap one another.
01:36
And so, you may have heard a skeletal muscle referred to as striated muscle.
01:43
It's because it looks striped.
01:45
When you see it, you slice a section of it lengthwise and look at it under a microscope, it looks striped because you're seeing some different bands.
01:57
And we'll see, as we look at the picture, we'll see why those bands are like they are.
02:03

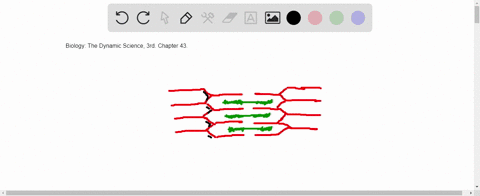

So i'm going to draw in here some, the myos and filaments.
02:10
The thicker filaments.
02:12
And so they're thicker, so i'm going to have to do this to make them look thicker than the red lines.
02:24
Notice that i'm not making them thick in the very middle.
02:27
There's a reason for that.
02:29
I'll get to that in just a second.
02:40
Okay.
02:44
Excuse me.
02:47
So let's start over on the left side and look at the places where actin filaments are connected.
02:54
You see here that looks like a z, right, as we go down.
03:02
So this place where all the actin filaments are connected is referred to as the z line.
03:12
And you can see that there is another z line over to the right where the actin filaments again on that side are connected.
03:26
So when you look at the structure from one z -line, line to the next, that is called a sarcomere.
03:44
Sarcomere is the structure from one z line to the next on a myofibro, in a myofibro.
03:51
And that is the actual unit that contracts.
03:55
And when multiple sarcomeres contract, then the whole muscle contracts.
04:01
Okay, so sarcomere from z line to z line...
