ODD ID Numbers A cantilever beam under distributed load (including gravitation effect) is to be designed. Design the thickness (height) of the rectangular cross section with constant width of 200 mm for a maximum deflection of 150 mm at the tip. Material: AA 5083 Elastic Modulus 70.000 MPa, Sy 90 MPa and Su 170 MPa. Distributed mass: 50 kg/m and g=9,81 m/sec2.

          ODD ID Numbers

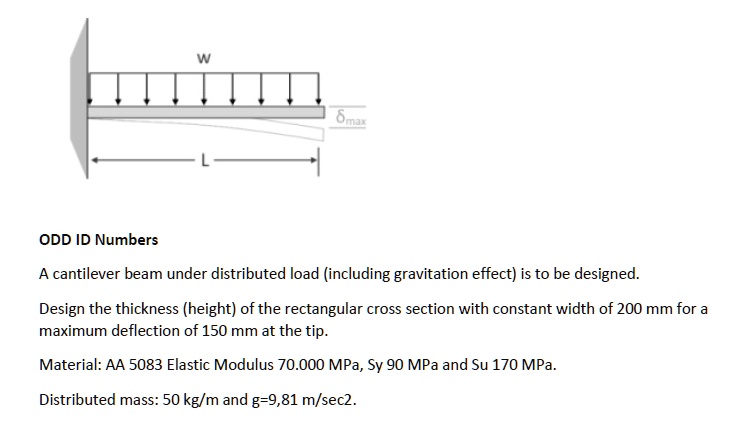

A cantilever beam under distributed load (including gravitation effect) is to be designed.
Design the thickness (height) of the rectangular cross section with constant width of 200 mm for a
maximum deflection of 150 mm at the tip.
Material: AA 5083 Elastic Modulus 70.000 MPa, Sy 90 MPa and Su 170 MPa.
Distributed mass: 50 kg/m and g=9,81 m/sec2.

ODD ID Numbers
A cantilever beam under distributed load (including gravitation effect) is to be designed.
Design the thickness (height) of the rectangular cross section with constant width of 200 mm for a
maximum deflection of 150 mm at the tip.
Material: AA 5083 Elastic Modulus 70.000 MPa, Sy 90 MPa and Su 170 MPa.
Distributed mass: 50 kg/m and g=9,81 m/sec2.

Added by Heather H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adam Moon

Step 1

The distributed load can be calculated by multiplying the mass per unit length (50 kg/m) by the acceleration due to gravity (9.81 m/s^2). Distributed load = mass per unit length * acceleration due to gravity Distributed load = 50 kg/m * 9.81 m/s^2 Distributed load Show more…

Show all steps

Thanks for your feedback!

ODD ID Numbers A cantilever beam under distributed load (including gravitational effect) is to be designed. Design the thickness (height) of the rectangular cross section with a constant width of 200 mm for a maximum deflection of 150 mm at the tip. Material: AA 5083 Elastic Modulus 70,000 MPa, Sy 90 MPa, and Su 170 MPa. Distributed mass: 50 kg/m and g = 9.81 m/s^2.
