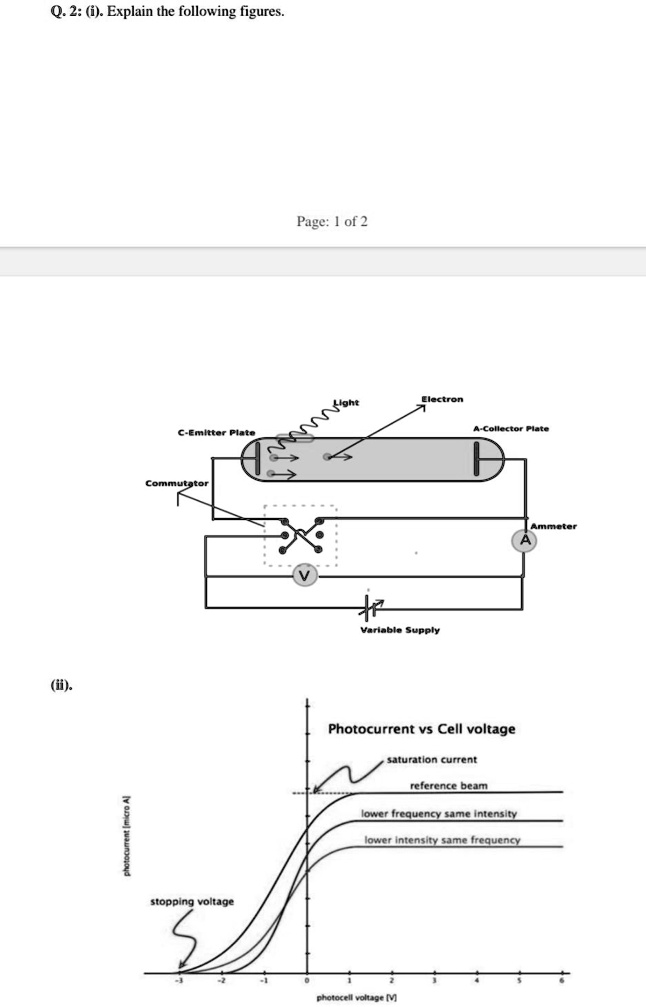

Q. 2: (i). Explain the following figures. Page: 1 of 2 C-Emitter Plate Commutator Variable Supply A-Collector Plate Ammeter Photocurrent vs Cell voltage saturation current reference beam lower frequency same intensity lower intensity same frequency photocell voltage [V] (ii). photocurrent [micro A] stopping voltage Light Electron

          Q. 2: (i). Explain the following figures.
Page: 1 of 2
C-Emitter Plate
Commutator
Variable Supply
A-Collector Plate
Ammeter
Photocurrent vs Cell voltage
saturation current
reference beam
lower frequency same intensity
lower intensity same frequency
photocell voltage [V]
(ii).
photocurrent [micro A]
stopping voltage
Light
Electron

Q. 2: (i). Explain the following figures.
Page: 1 of 2
C-Emitter Plate
Commutator
Variable Supply
A-Collector Plate
Ammeter
Photocurrent vs Cell voltage
saturation current
reference beam
lower frequency same intensity
lower intensity same frequency
photocell voltage [V]
(ii).
photocurrent [micro A]
stopping voltage
Light
Electron

Added by Anthony B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hunza Gilgit

Step 1

The light variable supply is shown as a box with an arrow pointing towards a photocell. This indicates that the light from the supply is directed towards the photocell. (ii) Photocurrent vs Cell voltage: This figure shows a graph with the photocurrent on the Show more…

Show all steps

Thanks for your feedback!

Explain both in detail in handwritten. Q.2: (i) Explain the following figures. Page: 1 of 2 Light Variable Supply (ii). Photocurrent vs Cell voltage Saturation current Reference beam Lower frequency same intensity Lower intensity same frequency Stopping voltage Photocell voltage [V]
