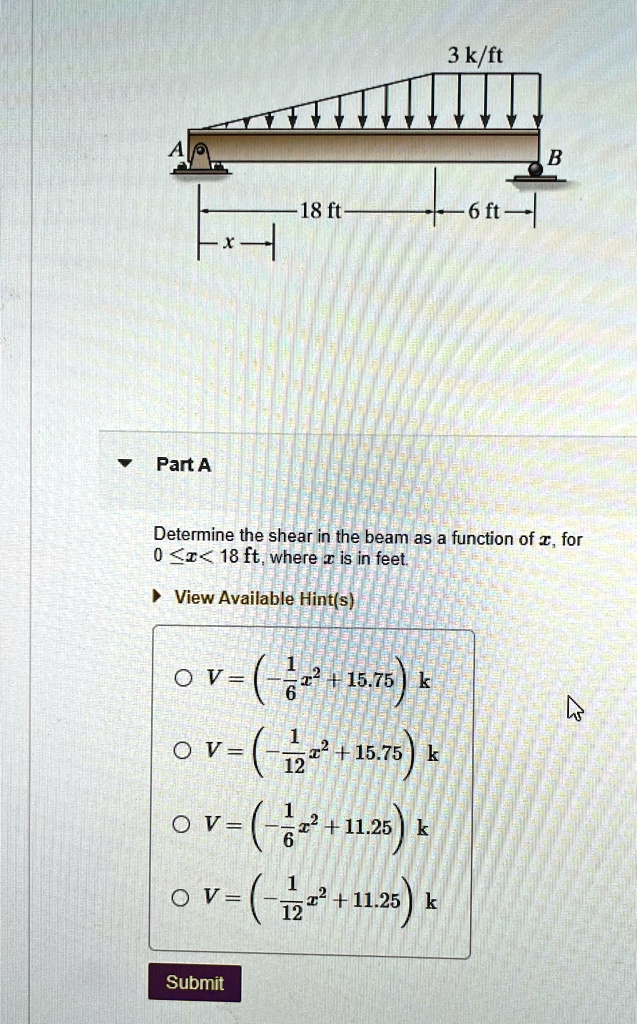

Part A Determine the shear in the beam as a function of $x$, for $0 \le x \le 18$ ft, where $x$ is in feet. $V = ( - \frac{1}{6} x^2 + 15.75 ) \text{ k}$ $V = ( - \frac{1}{12} x^2 + 15.75 ) \text{ k}$ $V = ( - \frac{1}{6} x^2 + 11.25 ) \text{ k}$ $V = ( - \frac{1}{12} x^2 + 11.25 ) \text{ k}$
Added by George G.
Close
Step 1
- The beam has a triangular distributed load with a maximum intensity of 3 k/ft at the right end. Show more…
Show all steps
Your feedback will help us improve your experience
Sufiyan Alam and 96 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

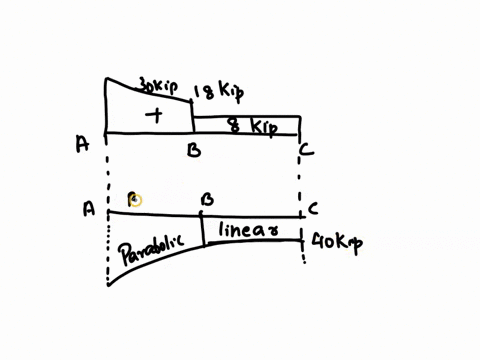

Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam as functions of $x$ for $0 \leq x \leq 6$ ft and 6 ft $\leq x \leq 9$ ft.
Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam as functions of $x$ for $0 \leq x \leq 6$ ft and 6 ft $\leq x \leq 10$ ft.
6-3. Draw the shear and moment diagrams for the beam and determine the shear and moment throughout the beam as functions of x for 0 ≤ x ≤ 6 ft and 6 ft ≤ x ≤ 10 ft. 10 kip 2 kip/ft 8 kip 40 kip·ft 6 ft 4 ft Prob. 6-3
