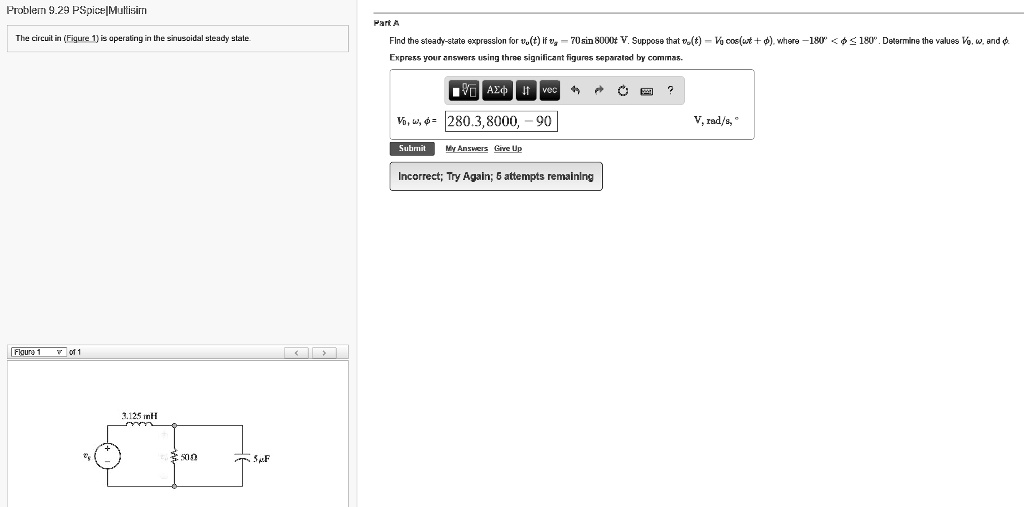

Problem 9.29 PSpice|Multisim The circuit in (Figure 1) is operating in the sinusoidal steady state. Part A Find the steady-state expression for vo(t) if vs = 70 sin 8000t V. Suppose that vo(t) = Vo cos(?t + ?), where -180° < ? ? 180°. Determine the values Vo, ?, and ?. Express your answers using three significant figures separated by commas. Figure 1 of 1 3.125 mH 50 ? 5 ?F Vo, ?, ? = 280.3, 8000, -90 V, rad/s, °

          Problem 9.29 PSpice|Multisim
The circuit in (Figure 1) is operating in the sinusoidal steady state.
Part A
Find the steady-state expression for vo(t) if vs = 70 sin 8000t V. Suppose that vo(t) = Vo cos(?t + ?), where -180° < ? ? 180°. Determine the values Vo, ?, and ?.
Express your answers using three significant figures separated by commas.
Figure 1 of 1
3.125 mH
50 ?
5 ?F
Vo, ?, ? = 280.3, 8000, -90
V, rad/s, °

Problem 9.29 PSpice|Multisim
The circuit in (Figure 1) is operating in the sinusoidal steady state.
Part A
Find the steady-state expression for vo(t) if vs = 70 sin 8000t V. Suppose that vo(t) = Vo cos(?t + ?), where -180° < ? ? 180°. Determine the values Vo, ?, and ?.
Express your answers using three significant figures separated by commas.
Figure 1 of 1
3.125 mH
50 ?
5 ?F
Vo, ?, ? = 280.3, 8000, -90
V, rad/s, °

Added by Maureen C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hafiz Shahzaib

Step 1

- Given: \( v_g = 70 \sin(8000t) \) V - Circuit components: \( R = 50 \Omega \), \( L = 0.125 \text{ mH} \) Show more…

Show all steps

Thanks for your feedback!

Part A Find the steady-state expression for vo(t) if vg = 70sin(8000t)V. Suppose that vo(t) = V0cos(ωt + ϕ), where -180° < ϕ ≤ 180°. Determine the values V0, ω, and ϕ. Problem 9.29 PSpice|Multisim Part A: Find the steady-state expression for vo(t) if vg = 70sin(8000t)V. Suppose that vo(t) = V0cos(ωt + ϕ), where -180° < ϕ ≤ 180°. Determine the values V0, ω, and ϕ using three significant figures separated by commas. The circuit in Figure 1 is operating in the sinusoidal steady state. V0, ω, ϕ = 280.3, 8000, -90 V, rad/s, ° Figure 1 3.125 mH 50Ω 5μF
