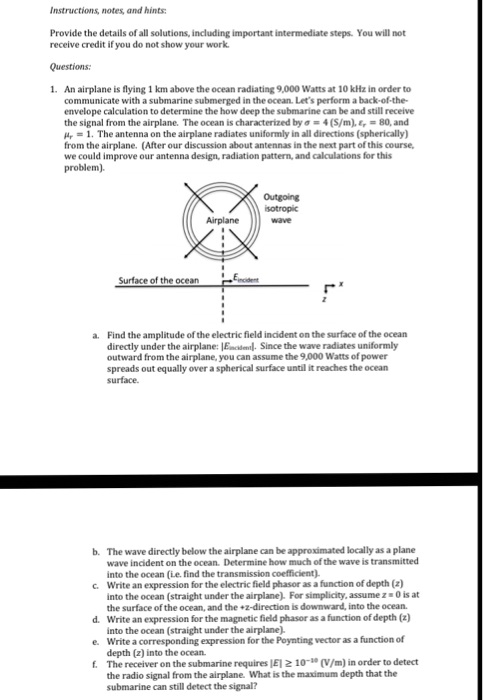

Instructions, notes, and hints: Provide the details of all solutions, including important intermediate steps. You will not receive credit if you do not show your work. Questions: 1. An airplane is flying 1 km above the ocean radiating 9,000 Watts at 10 kHz in order to communicate with a submarine submerged in the ocean. Let's perform a back-of-the- envelope calculation to determine the how deep the submarine can be and still receive the signal from the airplane. The ocean is characterized by $sigma$ = 4 (S/m), $epsilon_r$ = 80, and $mu_r$ = 1. The antenna on the airplane radiates uniformly in all directions (spherically) from the airplane. (After our discussion about antennas in the next part of this course, we could improve our antenna design, radiation pattern, and calculations for this problem). Airplane Surface of the ocean $E_{incident}$ Outgoing isotropic wave a. Find the amplitude of the electric field incident on the surface of the ocean directly under the airplane: $|E_{incident}|$. Since the wave radiates uniformly outward from the airplane, you can assume the 9,000 Watts of power spreads out equally over a spherical surface until it reaches the ocean surface. b. The wave directly below the airplane can be approximated locally as a plane wave incident on the ocean. Determine how much of the wave is transmitted into the ocean (i.e. find the transmission coefficient). c. Write an expression for the electric field phasor as a function of depth ($z$) into the ocean (straight under the airplane). For simplicity, assume $z$ = 0 is at the surface of the ocean, and the +$z$-direction is downward, into the ocean. d. Write an expression for the magnetic field phasor as a function of depth ($z$) into the ocean (straight under the airplane). e. Write a corresponding expression for the Poynting vector as a function of depth ($z$) into the ocean. f. The receiver on the submarine requires $|E| ge 10^{-10}$ (V/m) in order to detect the radio signal from the airplane. What is the maximum depth that the submarine can still detect the signal?
Added by Juan Antonio A.
Close
Step 1
Plugging in the values, we get: Eincitem = sqrt(9,000/(4*pi*(1,000)^2)) = 0.003 V/m b. The transmission coefficient (T) is the ratio of the transmitted electric field to the incident electric field. For a plane wave incident on a dielectric interface, the Show more…
Show all steps
