4.) Using the method of sections, determine the force in members CD, KD and KJ of the truss shown below, indicating whether the members are in tension or compression. Each bay is 2 m. long and 3 m. high. There is a pin on the left and a roller on the right. You must start by determining the reactions, as usual. Please show all your work.

Name: 4.) Using the method of sections, determine the force in members CD, KD and KJ of the truss shown below, indicating whether the members are in tension or compression. Each bay is 2 m. long and 3 m. high. There is a pin on the left and a roller on the right. You must start by determining the reactions, as usual. Please show all your work.
Uploaded: 2022-11-23T08:22:51-08:00
Duration: 1 min 45 s
Channel: Sri K
Description: 4.) Using the method of sections, determine the force in members CD, KD and KJ of the truss shown below, indicating whether the members are in tension or compression. Each bay is 2 m. long and 3 m. high. There is a pin on the left and a roller on the right. You must start by determining the reactions, as usual. Please show all your work.

          4.) Using the method of sections, determine the force in members CD, KD and KJ of the truss shown below, indicating whether the members are in tension or compression. Each bay is 2 m. long and 3 m. high. There is a pin on the left and a roller on the right. You must start by determining the reactions, as usual. Please show all your work.

4.) Using the method of sections, determine the force in members CD, KD and KJ of the truss shown below, indicating whether the members are in tension or compression. Each bay is 2 m. long and 3 m. high. There is a pin on the left and a roller on the right. You must start by determining the reactions, as usual. Please show all your work.

Added by Barbara H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

11/23/2022

Step 1

Step 1: First, we need to determine the reactions at the pin and roller supports. Show more…

Show all steps

Thanks for your feedback!

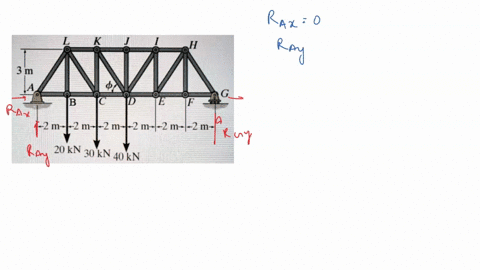

please draw diagrams 4. Using the method of sections,determine the force in members CD,KD and KJ of the truss shown below,indicating whether the members are in tension or compression.Each bay is 2 m long and 3 m.high.There is a pin on the left and a roller on the right.You must start by determining the reactions,as usual.Please show all your work. K 3m G B E 2m--2m-2m-2m-2m--2m- 20 kN30kN40 kN 2
