1) The equivalent capacitance of the following circuit is 5 ?F 25 ?F 20 ?F i) 12.5 ?F ii) 50 ?F iii) 25 ?F iv) 29 ?F 2) Assume that the capacitors were replaced with inductors of the previous circuit. The equivalent inductance is i) 12.5 ?H ii) 50 ?H iii) 25 ?H iv) 29 ?H
Added by Phyllis D.
Close
Step 1
We have three capacitors with capacitances of 5F, 25F, and 20F. Show more…
Show all steps
Your feedback will help us improve your experience
Daniel Alva and 69 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The equivalent capacitance of this circuit is 8
Adi S.

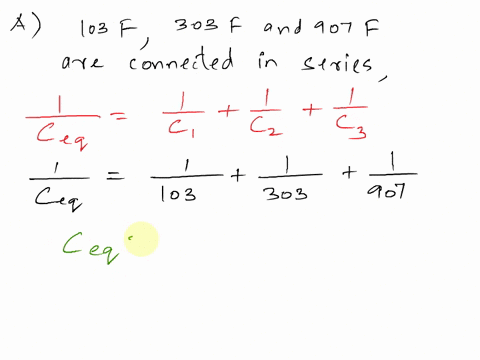

A) Three capacitors are connected in series in an electric circuit. Their capacitances are 10^3 F, 30^3 F, and 90^7 F. What is the equivalent capacitance? B) What is the equivalent capacitance of a 1 F, a 3 F, and a 6 F capacitor connected in parallel? C) Convert the following value: 27 × 10^-8 m^3 to mm^3 (Write the solution like (1234567.89), and don't write it like (1 × 10^2))
Madhur L.
44. Employ phasor-based analysis to obtain an expression for i(t) in the circuit of Fig: 10.57. i(t) = 2(2−14 cos(100t - 209)) A C = 5 µF L = 20 mH FIGURE 10.57 45. Design a suitable combination of resistors, capacitors, and/or inductors which has an equivalent impedance at ω = 100 rad/s of: (a) 1 Ω using at least one inductor (b) 7/∠10° Ω (c) 3 - j4 Ω 46. Design a suitable combination of resistors, capacitors, and/or inductors which has an equivalent admittance at ω = 10 rad/s of: (a) 1 S using at least one capacitor (b) 12/∠-18° S (c) 2 + j mS.
