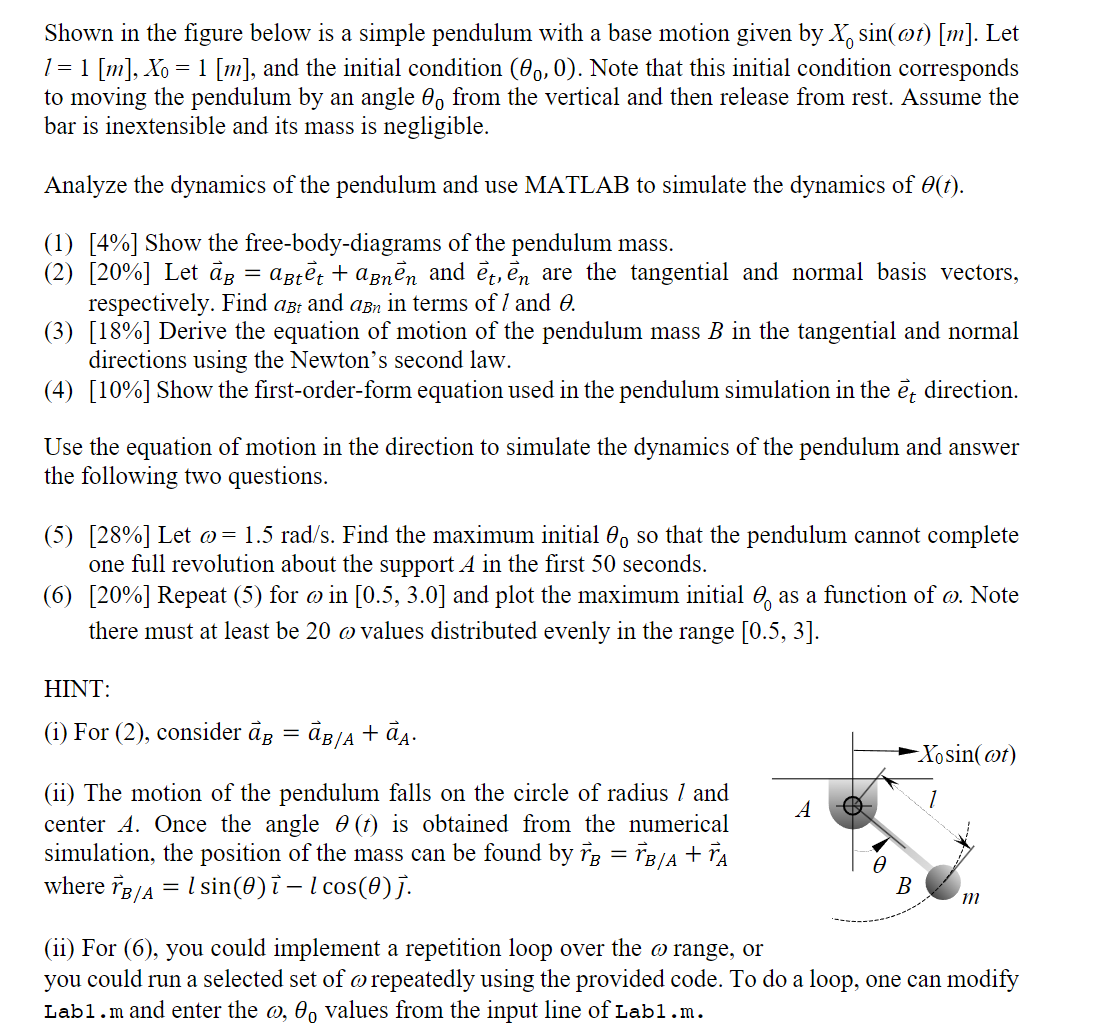

Shown in the figure below is a simple pendulum with a base motion given by \( X_{0} \sin (\omega t)[m] \). Let \( l=1[\mathrm{~m}], X_{0}=1[\mathrm{~m}] \), and the initial condition \( \left(\theta_{0}, 0\right) \). Note that this initial condition corresponds to moving the pendulum by an angle \( \theta_{0} \) from the vertical and then release from rest. Assume the bar is inextensible and its mass is negligible. Analyze the dynamics of the pendulum and use MATLAB to simulate the dynamics of \( \theta(t) \). (1) [4\%] Show the free-body-diagrams of the pendulum mass. (2) [20\%] Let \( \vec{a}_{B}=a_{B t} \vec{e}_{t}+a_{B n} \vec{e}_{n} \) and \( \vec{e}_{t}, \vec{e}_{n} \) are the tangential and normal basis vectors, respectively. Find \( a_{B t} \) and \( a_{B n} \) in terms of \( l \) and \( \theta \). (3) \( [18 \%] \) Derive the equation of motion of the pendulum mass \( B \) in the tangential and normal directions using the Newton's second law. (4) \( [10 \%] \) Show the first-order-form equation used in the pendulum simulation in the \( \vec{e}_{t} \) direction. Use the equation of motion in the direction to simulate the dynamics of the pendulum and answer the following two questions. (5) \( [28 \%] \) Let \( \omega=1.5 \mathrm{rad} / \mathrm{s} \). Find the maximum initial \( \theta_{0} \) so that the pendulum cannot complete one full revolution about the support \( A \) in the first 50 seconds. (6) \( [20 \%] \) Repeat (5) for \( \omega \) in \( [0.5,3.0] \) and plot the maximum initial \( \theta_{0} \) as a function of \( \omega \). Note there must at least be \( 20 \omega \) values distributed evenly in the range \( [0.5,3] \). HINT: (i) For (2), consider \( \vec{a}_{B}=\vec{a}_{B / A}+\vec{a}_{A} \). (ii) The motion of the pendulum falls on the circle of radius \( l \) and center \( A \). Once the angle \( \theta(t) \) is obtained from the numerical simulation, the position of the mass can be found by \( \vec{r}_{B}=\vec{r}_{B / A}+\vec{r}_{A} \) where \( \vec{r}_{B / A}=l \sin (\theta) \vec{\imath}-l \cos (\theta) \vec{\jmath} \). (ii) For (6), you could implement a repetition loop over the \( \omega \) range, or you could run a selected set of \( \omega \) repeatedly using the provided code. To do a loop, one can modify Lab1.m and enter the \( \omega, \theta_{0} \) values from the input line of \( \mathrm{Lab} 1 . \mathrm{m} \).
Added by Mason G.
Close
Step 1
There are two forces acting on the mass B: gravitational force (mg) acting downward and tension force (T) acting along the rod towards the pivot point A. (2) Finding \(a_{Bt}\) and \(a_{Bn}\): We know that \( \vec{a}_{B}=\vec{a}_{B/A}+\vec{a}_{A} \). The Show more…
Show all steps
