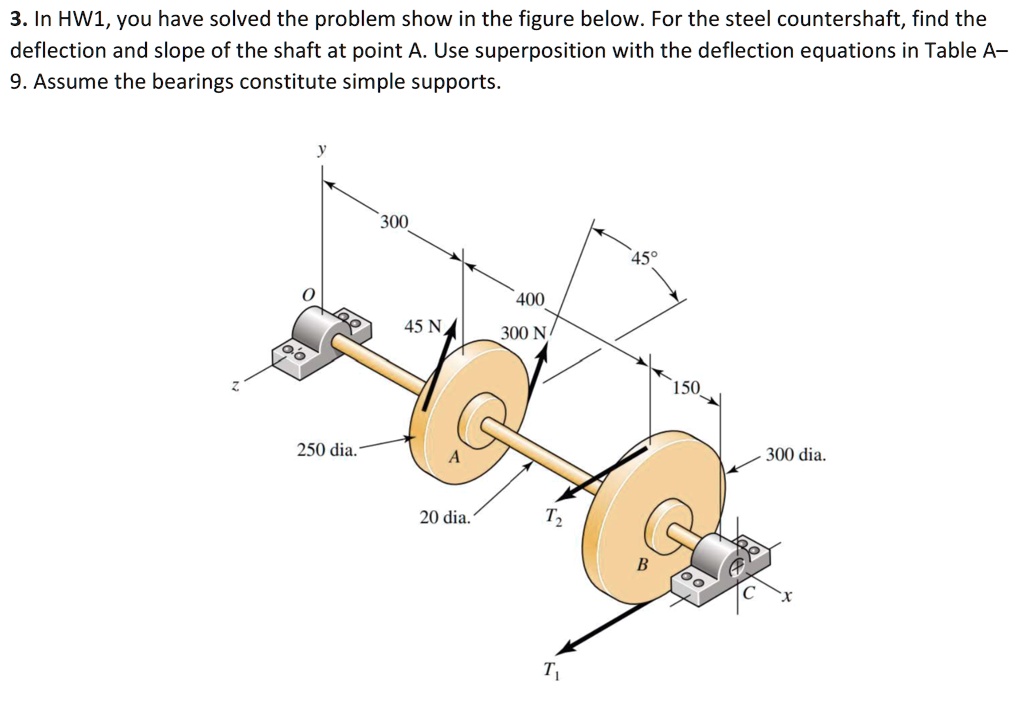

Please solve for both the deflection and slope of the shaft at point A using superposition with the given deflection equations 3.In HW1,you have solved the problem show in the figure below.For the steel countershaft,find the deflection and slope of the shaft at point A. Use superposition with the deflection equations in Table A- 9.Assume the bearings constitute simple supports 400 45N 300N 250 dia. 300 dia. 20 dia. T2
