Question

A project has been defined to contain the following list of activities along with their required times for completion. Activity No. Activity Time (weeks) Immediate Predecessors (Dependencies) 1 A Collect requirements 5 - 2 B Analyze processes 4 A 3 C Analyze data 4 B 4 D Design processes 8 B 5 E Design data 5 C 6 F Design screens 4 C,D 7 G Design reports 6 D,E 8 H Program 7 F,G 9 I Test and Documents 9 G 10 J Install 4 H,I a. Construct a Gantt chart for the project defined in Problem b. Draw a Network diagram for the activities. c. Calculate the earliest expected completion time. d. Show the critical path. e. What would happen if activity F were revised to take 6 weeks instead of 4 weeks?

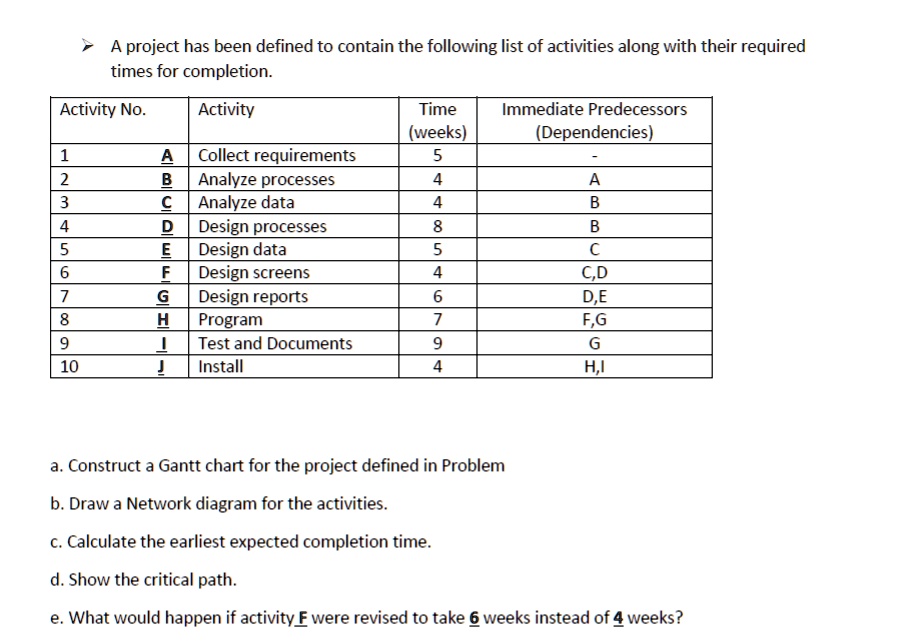

          A project has been defined to contain the following list of activities along with their required
times for completion.
Activity No.
Activity
Time
(weeks)
Immediate Predecessors
(Dependencies)
1
A Collect requirements
5
-
2
B Analyze processes
4
A
3
C Analyze data
4
B
4
D Design processes
8
B
5
E Design data
5
C
6
F Design screens
4
C,D
7
G Design reports
6
D,E
8
H Program
7
F,G
9
I Test and Documents
9
G
10
J Install
4
H,I
a. Construct a Gantt chart for the project defined in Problem
b. Draw a Network diagram for the activities.
c. Calculate the earliest expected completion time.
d. Show the critical path.
e. What would happen if activity F were revised to take 6 weeks instead of 4 weeks?

A project has been defined to contain the following list of activities along with their required
times for completion.
Activity No.
Activity
Time
(weeks)
Immediate Predecessors
(Dependencies)
1
A Collect requirements
5
-
2
B Analyze processes
4
A
3
C Analyze data
4
B
4
D Design processes
8
B
5
E Design data
5
C
6
F Design screens
4
C,D
7
G Design reports
6
D,E
8
H Program
7
F,G
9
I Test and Documents
9
G
10
J Install
4
H,I
a. Construct a Gantt chart for the project defined in Problem
b. Draw a Network diagram for the activities.
c. Calculate the earliest expected completion time.
d. Show the critical path.
e. What would happen if activity F were revised to take 6 weeks instead of 4 weeks?
