Question

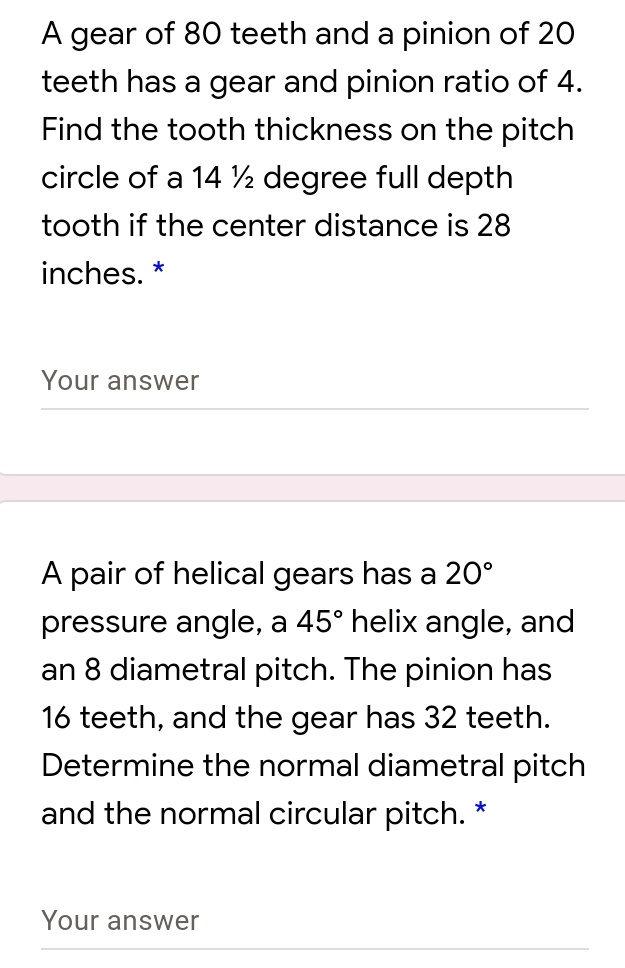

A gear of 80 teeth and a pinion of 20 teeth has a gear and pinion ratio of 4. Find the tooth thickness on the pitch circle of a 14 ½ degree full depth tooth if the center distance is 28 inches. A pair of helical gears has a 20° pressure angle, a 45° helix angle, and an 8 diametral pitch. The pinion has 16 teeth, and the gear has 32 teeth. Determine the normal diametral pitch and the normal circular pitch.

          A gear of 80 teeth and a pinion of 20 teeth has a gear and pinion ratio of 4. Find the tooth thickness on the pitch circle of a 14 ½ degree full depth tooth if the center distance is 28 inches.

A pair of helical gears has a 20° pressure angle, a 45° helix angle, and an 8 diametral pitch. The pinion has 16 teeth, and the gear has 32 teeth. Determine the normal diametral pitch and the normal circular pitch.

A gear of 80 teeth and a pinion of 20 teeth has a gear and pinion ratio of 4. Find the tooth thickness on the pitch circle of a 14 ½ degree full depth tooth if the center distance is 28 inches.

A pair of helical gears has a 20° pressure angle, a 45° helix angle, and an 8 diametral pitch. The pinion has 16 teeth, and the gear has 32 teeth. Determine the normal diametral pitch and the normal circular pitch.

Added by Brandon A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/09/2023

Step 1

Tooth thickness on the pitch circle: = (Diameter of gear)/(Pinion Diametral Pitch) Show more…

Show all steps

Thanks for your feedback!

A gear of 80 teeth and a pinion of 20 teeth has a gear and pinion ratio of 4. Find the tooth thickness on the pitch circle of a 14 1/2 degree full depth tooth if the center distance is 28 inches.
