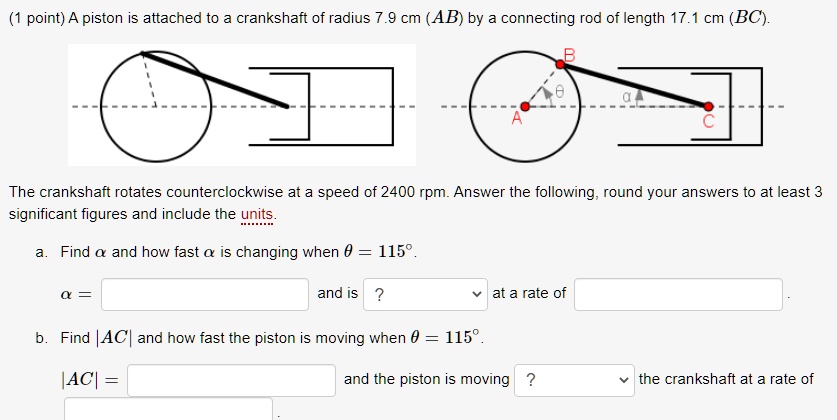

A piston is attached to a crankshaft of radius 7.9 cm (AB) by a connecting rod of length 17.1 cm (BC). The crankshaft rotates counterclockwise at a speed of 2400 rpm. Answer the following, round your answers to at least 3 significant figures and include the units. a. Find ? and how fast ? is changing when ? = 115°. ? = [ ] and is [ ] at a rate of [ ]. b. Find |AC| and how fast the piston is moving when ? = 115°. |AC| = [ ] and the piston is moving [ ] the crankshaft at a rate of [ ].
Added by Vincent A.
Close
Your feedback will help us improve your experience
Penny Riley and 89 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the velocity of the piston and the angular velocity of AB about point A. The crank O-A rotates at 200 rev/min clockwise. Note that the vector ob is at 45° to the horizontal as the piston must slide in this direction. The values given are: 200 rev/min, 140 mm, 40 mm, 45°, 30°. Figure 17. Answer: 0.49 m/s and 6.92 rad/s.
Adi S.

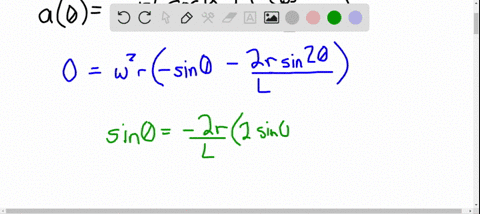

Crankshaft A crank of radius $r$ rotates with an angular frequency w. It is connected to a piston by a connecting rod of length $L$ (see figure). The acceleration of the piston varies with the position of the crank according to the function $$a(\theta)=\omega^{2} r\left(\cos \theta+\frac{r \cos 2 \theta}{L}\right)$$. For fixed $\omega$ and $r,$ find the values of $\theta,$ with $0 \leq \theta \leq 2 \pi,$ for which the acceleration of the piston is a maximum and minimum. (FIGURE CAN'T COPY)
Applications of the Derivative
Optimization Problems
In the engine system shown, $l=160 \mathrm{~mm}$ and $b=60 \mathrm{~mm} .$ Knowing that the crank $A B$ rotates with a constant angular velocity of $1000 \mathrm{rpm}$ clockwise, determine the velocity of the piston $P$ and the angular velocity of the connecting rod when $(a) \theta=0,(b) \theta=90^{\circ}$
