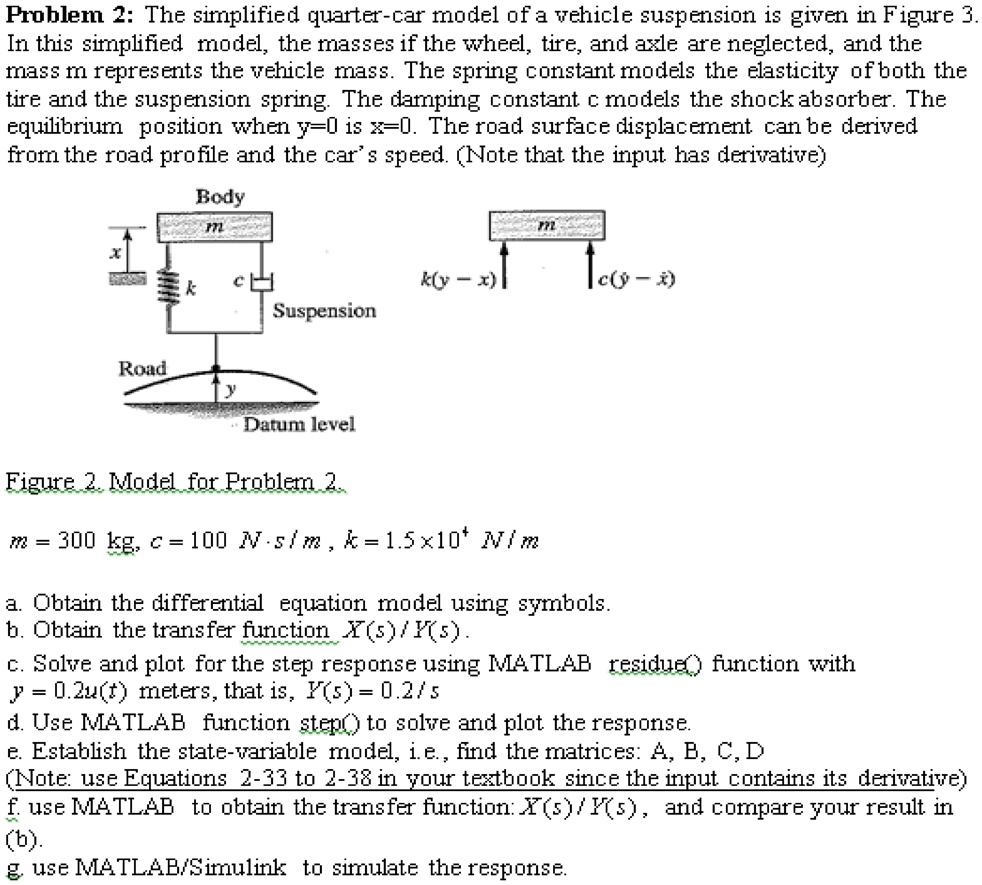

Problem 2: The simplified quarter-car model of a vehicle suspension is given in Figure 3. In this simplified model, the masses if the wheel, tire, and axle are neglected, and the mass m represents the vehicle mass. The spring constant models the elasticity of both the tire and the suspension spring. The damping constant c models the shock absorber. The equilibrium position when y=0 is x=0. The road surface displacement can be derived from the road profile and the car's speed. (Note that the input has derivative) Body m x k c Suspension Road y Datum level m k(y - x) c(? - ?) Figure 2. Model for Problem 2. m = 300 kg, c = 100 N ? s / m, k = 1.5 × 10? N / m a. Obtain the differential equation model using symbols. b. Obtain the transfer function X(s) / Y(s). c. Solve and plot for the step response using MATLAB residue() function with y = 0.2u(t) meters, that is, Y(s) = 0.2 / s d. Use MATLAB function step() to solve and plot the response. e. Establish the state-variable model, i.e., find the matrices: A, B, C, D (Note: use Equations 2-33 to 2-38 in your textbook since the input contains its derivative) f. use MATLAB to obtain the transfer function: X(s) / Y(s), and compare your result in (b). g. use MATLAB/Simulink to simulate the response.
Added by John B.
Close
Step 1
Differential Equation Model: The differential equation model can be obtained by applying Newton's second law (F=ma) to the mass m. The forces acting on the mass are the spring force (-kx) and the damping force (-cx'), where x' is the derivative of x with respect Show more…
Show all steps
