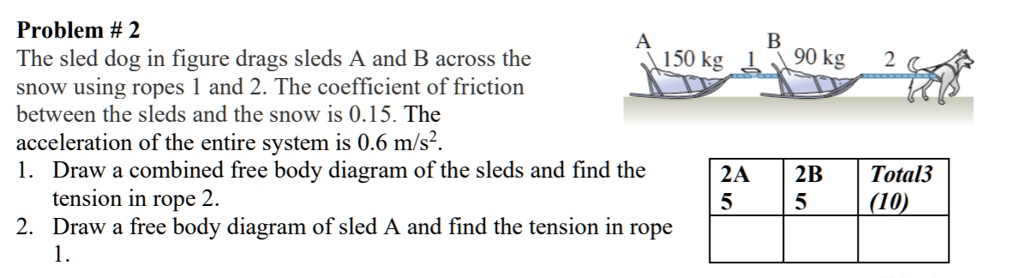

Problem # 2 The sled dog in figure drags sleds A and B across the snow using ropes 1 and 2. The coefficient of friction between the sleds and the snow is 0.15. The acceleration of the entire system is 0.6 m/s². 1. Draw a combined free body diagram of the sleds and find the tension in rope 2. 2. Draw a free body diagram of sled A and find the tension in rope 1.

          Problem # 2
The sled dog in figure drags sleds A and B across the snow using ropes 1 and 2. The coefficient of friction between the sleds and the snow is 0.15. The acceleration of the entire system is 0.6 m/s².

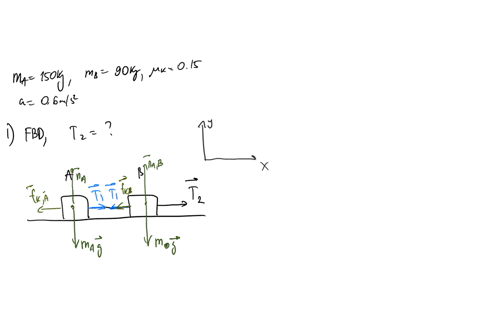

1. Draw a combined free body diagram of the sleds and find the tension in rope 2.
2. Draw a free body diagram of sled A and find the tension in rope 1.

Problem # 2
The sled dog in figure drags sleds A and B across the snow using ropes 1 and 2. The coefficient of friction between the sleds and the snow is 0.15. The acceleration of the entire system is 0.6 m/s².
1. Draw a combined free body diagram of the sleds and find the tension in rope 2.
2. Draw a free body diagram of sled A and find the tension in rope 1.

Added by Marilyn M.

University Physics with Modern Physics

Hugh D. Young 14th Edition
