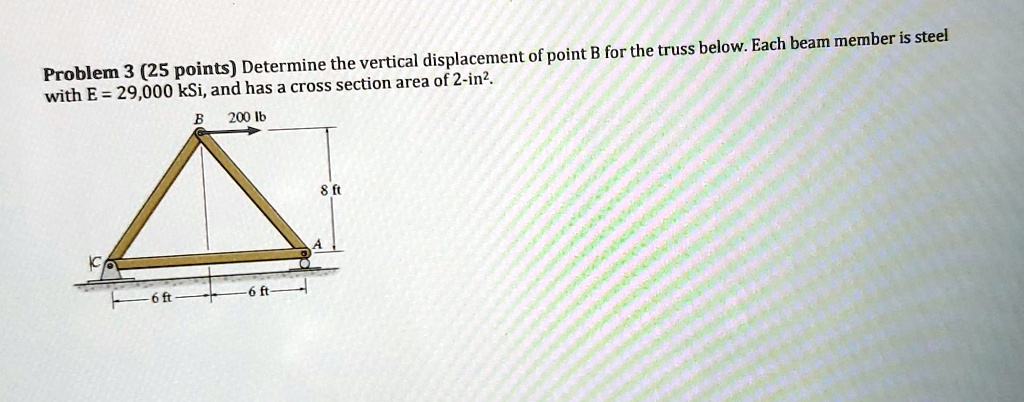

Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E = 29,000 kSi, and has a cross section area of 2-in2. B 200 lb 8 ft 6 ft 6 ft

Name: Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E = 29,000 kSi, and has a cross section area of 2-in2. B 200 lb 8 ft 6 ft 6 ft
Uploaded: 2023-06-20T03:12:24-08:00
Duration: 2 min 54 s
Channel: Supreeta N
Description: Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E = 29,000 kSi, and has a cross section area of 2-in2. B 200 lb 8 ft 6 ft 6 ft

          Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E = 29,000 kSi, and has a cross section area of 2-in2. B 200 lb 8 ft 6 ft 6 ft

Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E = 29,000 kSi, and has a cross section area of 2-in2. B 200 lb 8 ft 6 ft 6 ft

Added by Christina H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

06/20/2023

Step 1

We are asked to find the vertical displacement of point B in a truss. The truss is subjected to a load of 200 lb at point B. Each beam member of the truss is made of steel with a modulus of elasticity (E) of 29,000 ksi and has a cross-sectional area of 2 in^2. The Show more…

Show all steps

Thanks for your feedback!

Problem 3 (25 points) Determine the vertical displacement of point B for the truss below. Each beam member is steel with E=29,000 ksi, and has a cross-sectional area of 2 in^2.
