Problem: Knowing that at the instant shown, the angular velocity of rod AB is 15 rad/s clockwise, determine (a) the angular velocity of rod BD; (b) the velocity of the midpoint of rod BD.
Added by Jason C.
Step 1
The linear velocity (v) is given by v = ω * r, where ω is the angular velocity and r is the distance from the axis of rotation to the point of interest. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Suman Saurav Thakur and 86 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Knowing that at the instant shown the angular velocity of rod $D E$ is 10 rad/s clockwise and the angular velocity of bar $E F$ is 15 rad/s counterclockwise, determine $(a)$ the angular velocity of bar $A B$, (b) the relative velocity of collar $B$ with respect to rod $D E .$
Sri K.
Knowing that at the instant shown the angular velocity of bar $A B$ is 15 rad/s clockwise and the angular velocity of bar $E F$ is 10 rad/s clockwise, determine $(a)$ the angular velocity of rod $D E,(b)$ the relative velocity of collar $B$ with respect to rod $D E .$
Kinematics of Rigid Bodies
Analyzing Motion with Respect to a Rotating Frame

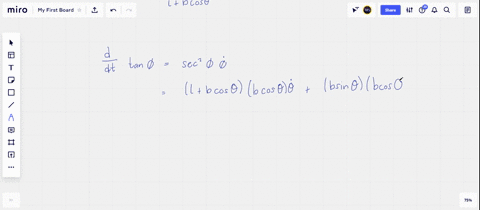

Crank $A B$ rotates with a constant clockwise angular velocity $\omega .$ Using the method of Sec. $15.4 \mathrm{B}$, derive expressions for the angular velocity of $\operatorname{rod} B D$ and the velocity of the point on the rod coinciding with point $E$ in terms of $\theta, \omega, b,$ and $l$.
