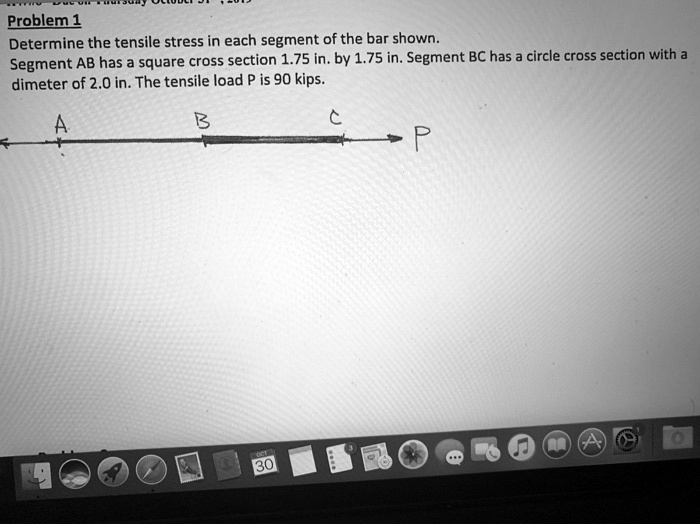

Problem 1 Determine the tensile stress in each segment of the bar shown. Segment AB has a square cross section 1.75 in. by 1.75 in. Segment BC has a circle cross section with a dimeter of 2.0 in. The tensile load P is 90 kips.
Added by Ashley K.
Close
Step 1
75 in^2 Segment BC: 2.0 in^2 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 98 other Calculus 1 / AB educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A solid steel bar of diameter $d_{1}=60 \mathrm{mm}$ has a hole of diameter $d_{2}=32 \mathrm{mm}$ drilled through it (see figure). $\mathrm{A}$ steel pin of diameter $d_{2}$ passes through the hole and is attached to supports. Determine the maximum permissible tensile load $\tau_{y}=120 \mathrm{MPa},$ the yield stress for tension in the bar is $\sigma_{y}=250 \mathrm{MPa}$ and a factor of safety of 2.0 with respect to yielding is required. (Hint: Use the formulas of Case 15 Appendix D.)
Keerti J.

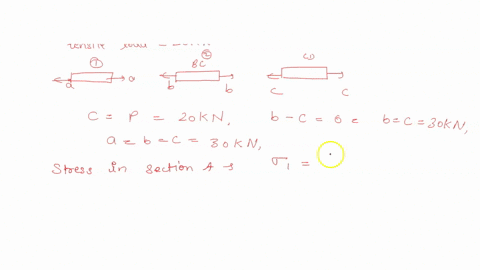

A bar ABCD consists of three sections: AB is 25 mm square and 50 mm long, BC is of 20 mm diameter and 40 mm long, and CD is of 12 mm diameter and 50 mm long. Determine the stress set up in each section of the bar when it is subjected to an axial tensile load of 20 kN. What will be the total extension of the bar under this load? For [32.63, 7, 176.8 MN/m^2, 0.062 mm]
Sri K.
