Q 5. For the circuit shown in Fig. 7, what will be the value of RL to get maximum power? Also, find this power: 209 609 10V <1802 RL 902 Fig. 7
Added by Angela H.
Step 1
7) which is crucial to provide an accurate answer. However, based on general principles of electrical circuits, the maximum power transfer theorem states that to transfer maximum power from a source to a load, the load resistance (RL) should be equal to the Show more…
Show all steps
Your feedback will help us improve your experience
Manish Jain and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

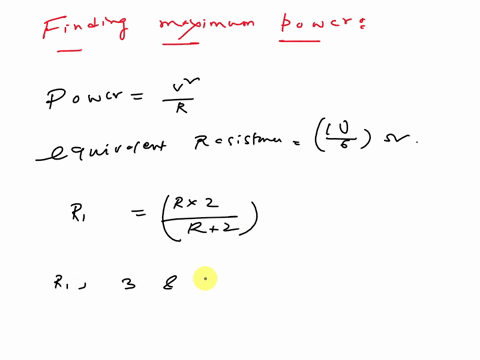

Find the maximum power that can be delivered to the resistor R in the circuit of Fig. 4.132.
Madhur L.
Determine the value of RL that will draw the maximum power from the rest of the circuit shown. Calculate the maximum power. 29 Ω 40 Ω 10 V 9 V RL 3.5 μΩ
Aparna S.
Consider the circuit shown below. (a) Find $I_{1}, I_{2}, I_{3}, I_{4},$ and $I_{5} .$ (b) Find the power supplied by the voltage sources. (c) Find the power dissipated by the resistors.
