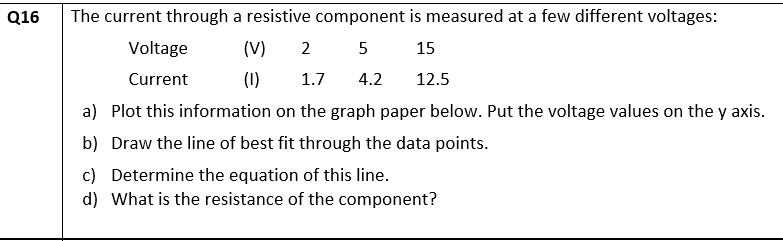

Q16 The current through a resistive component is measured at a few different voltages: Voltage (V) 2 5 15 Current (I) 1.7 4.2 12.5 a) Plot this information on the graph paper below. Put the voltage values on the y axis. b) Draw the line of best fit through the data points. c) Determine the equation of this line. d) What is the resistance of the component?
Added by Brent H.
Close
Step 1
Since the question specifies that voltage (V) should be on the y-axis and current (I) on the x-axis, each point will be plotted with the current as the x-coordinate and the voltage as the y-coordinate. The points to plot are (1.7, 2), (4.2, 5), and (12.5, 15). Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 98 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

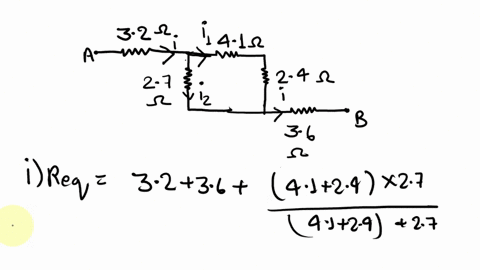

The potential energy diagram, connected as shown in Questions 23, has five resistors between points A and B. The voltage across the resistors is 15 V. Calculate the equivalent resistance between points A and B: 1.5 Ω, 4.8 Ω, 8.7 Ω, 10.4 Ω, 11.1 Ω. Calculate the current in the 3.6 Ω resistor: 1.3 A, 1.7 A, 2.9 A, 3.5 A, 15 A. Calculate the current in the 2.7 Ω resistor: 12 A, 0.8 A, 2.2 A, 0.4 A, 1.3 A.
Krishna S.

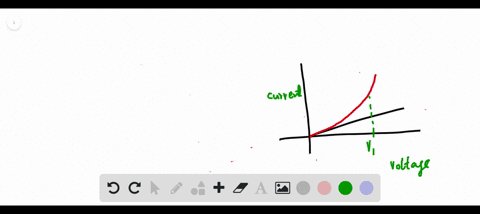

CEPredict/Explain Current-versus-voltage plots for two materials, $A$ and $B$ , are shown in Figure $21-37$ . (a) Is the resistance of material A greater than, less than, or equal to the resistance of material B at the voltage $V_{1} ?$ (b) Choose the best explanation from among the following: I. Curve B is higher in value than curve A. II. A larger slope means a larger value of $I / V$ , and hence a smaller value of $R .$ III. Curve $B$ has the larger slope at the voltage $V_{1}$ and hence the larger resistance.
Sufiyan A.
