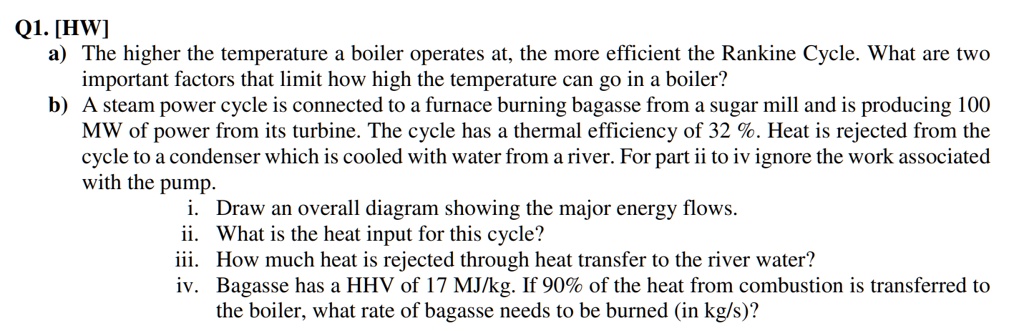

Q1. [HW] a) The higher the temperature a boiler operates at, the more efficient the Rankine Cycle. What are two important factors that limit how high the temperature can go in a boiler? b) A steam power cycle is connected to a furnace burning bagasse from a sugar mill and is producing 100 MW of power from its turbine. The cycle has a thermal efficiency of 32 %. Heat is rejected from the cycle to a condenser which is cooled with water from a river. For part ii to iv ignore the work associated with the pump. i. Draw an overall diagram showing the major energy flows. ii. What is the heat input for this cycle? iii. How much heat is rejected through heat transfer to the river water? iv. Bagasse has a HHV of 17 MJ/kg. If 90% of the heat from combustion is transferred to the boiler, what rate of bagasse needs to be burned (in kg/s)?
Added by Sergio V.
Close
Step 1
Different materials have different temperature limits, so the choice of materials for the boiler construction is crucial in determining the maximum temperature it can operate at. 2) Combustion limitations: The fuel being burned in the boiler also has a maximum Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A boiler plant incorporates an economizer and air preheater and generates steam at 40 bar and 300°C with a fuel heating value of 33000 kg/hr. The temperature of the feedwater is raised from 40°C to 125°C in the economizer, and the flue gases are cooled at the same time from 395°C to 225°C. The flue gas then enters the air preheater at a pressure of 1.2 bar and 16°C with a pressure rise across the fan of 18 mm of water. The power input to the fan is 5 kW, and it has a mechanical efficiency of 78%. Neglecting heat losses and assuming the flue gases as an ideal gas with a constant specific heat of Cp = 1.01 kJ/kg-K, calculate: (a) the mass flow rate of the air, (b) the temperature of the flue gases leaving the plant, (c) the mass flow rate of the steam, and (d) the efficiency of the boiler.
Sri K.
An ideal Rankine steam cycle modified with two closed feedwater heaters is shown below. The power cycle receives $75 \mathrm{kg} / \mathrm{s}$ of steam at the high pressure inlet to the turbine. The feedwater heater exit states for the boiler feedwater and the condensed steam are the normally assumed ideal states. The fraction of mass entering the high pressure turbine at state 5 that is extracted for the feedwater heater operating at $1400 \mathrm{kPa}$ is $y=0.1446 .$ Use the data provided in the tables given below to (a) Sketch the $T$ -s diagram for the ideal cycle. (b) Determine the fraction of mass, $z$, that is extracted for the closed feedwater heater operating at the $245 \mathrm{kPa}$ extraction pressure. (c) Determine the required cooling water flow rate, in $\mathrm{kg} / \mathrm{s}$, to keep the cooling water temperature rise in the condenser to $10^{\circ} \mathrm{C}$. Assume $c_{p}=4.18 \mathrm{kJ} / \mathrm{kg} \cdot \mathrm{K}$ for cooling water (d) Determine the net power output and the thermal efficiency of the plant.
A simple Rankine cycle uses water as the working fluid. The boiler operates at $6000 \mathrm{kPa}$ and the condenser at $50 \mathrm{kPa} .$ At the entrance to the turbine, the temperature is $450^{\circ} \mathrm{C} .$ The isentropic efficiency of the turbine is 94 percent, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by $6.3^{\circ} \mathrm{C}$. The boiler is sized for a mass flow rate of $20 \mathrm{kg} / \mathrm{s}$. Determine the rate at which heat is added in the boiler, the power required to operate the pumps, the net power produced by the cycle, and the thermal efficiency.
