Q4) The solid 60-mm diameter shaft is subjected to the torques applied to the gears. Determine: 1. The absolute maximum shear stress in the shaft 2. The angle of twist of B with respect to A, when the modulus of rigidity, G=70 GPa 300 N-m 500 N-m A 200 N-m 400 N-m 300 mm D 400 mm 500 mm 15% Marks B

Name: q4 the solid 60 mm diameter shaft is subjected to the torques applied to the gears determine 1 the absolute maximum shear stress in the shaft 2 the angle of twist of b with respect to a when 41112
Uploaded: 2023-09-01T16:58:09-08:00
Duration: 1 min 18 s
Channel: Adi S
Description: q4 the solid 60 mm diameter shaft is subjected to the torques applied to the gears determine 1 the absolute maximum shear stress in the shaft 2 the angle of twist of b with respect to a when 41112

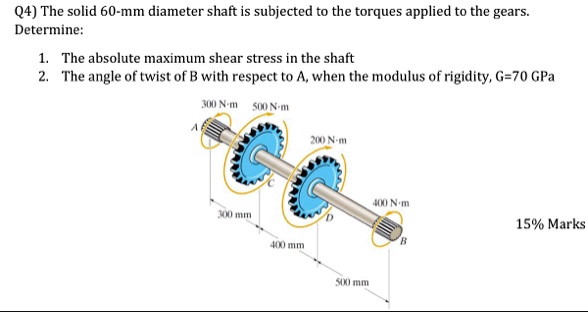

          Q4) The solid 60-mm diameter shaft is subjected to the torques applied to the gears.
Determine:
1. The absolute maximum shear stress in the shaft
2. The angle of twist of B with respect to A, when the modulus of rigidity, G=70 GPa
300 N-m
500 N-m
A
200 N-m
400 N-m
300 mm
D
400 mm
500 mm
15% Marks
B

q4 the solid 60 mm diameter shaft is subjected to the torques applied to the gears determine 1 the absolute maximum shear stress in the shaft 2 the angle of twist of b with respect to a when 41112

Added by Colleen H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

09/01/2023

Step 1

We will use the method of sections. Let's define the segments as AC, CD, and DB. Segment AC: Cut the shaft between A and C. Sum of torques = 0 $T_{AC} - 300 \text{ N} \cdot \text{m} = 0$ $T_{AC} = 300 \text{ N} \cdot \text{m}$ Segment CD: Cut the shaft between C Show more…
