The T-section short column shown in the figure 1 below carries an eccentric load \( P \) of \( 100 \mathrm{kN} \) at the position indicated. 1.1 Calculate the maximum tensile and compressive stresses induced in the column. 1.2 Plot the stress distribution diagram and determine the position of the neutral axis (NA). Figure 1
Added by Lizzy M.
Close
Step 1
Identify the problem or task at hand. Show more…
Show all steps
Your feedback will help us improve your experience
Rashmi Prakash and 70 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

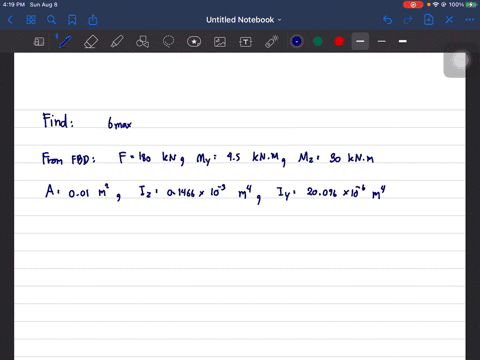

If $P=60 \mathrm{kN},$ determine the maximum normal stress developed on the cross section of the column.
The structural A992 steel column has the cross section shown. If it is fixed at the bottom and free at the top, determine if the column will buckle or yield when the load $P=10 \mathrm{kN}$ is applied. Use a factor of safety of 3 with respect to buckling and yielding.
The wood column is pinned at its base and top. If the eccentric force $P=10 \mathrm{kN}$ is applied to the column, investigate whether the column is adequate to support this loading without buckling or yielding. Take $E=10 \mathrm{GPa}$ and $\sigma_{Y}=15 \mathrm{MPa}$
Recommended Textbooks
University Physics with Modern Physics
Physics: Principles with Applications
Fundamentals of Physics
Watch the video solution with this free unlock.
EMAIL
PASSWORD
