Question

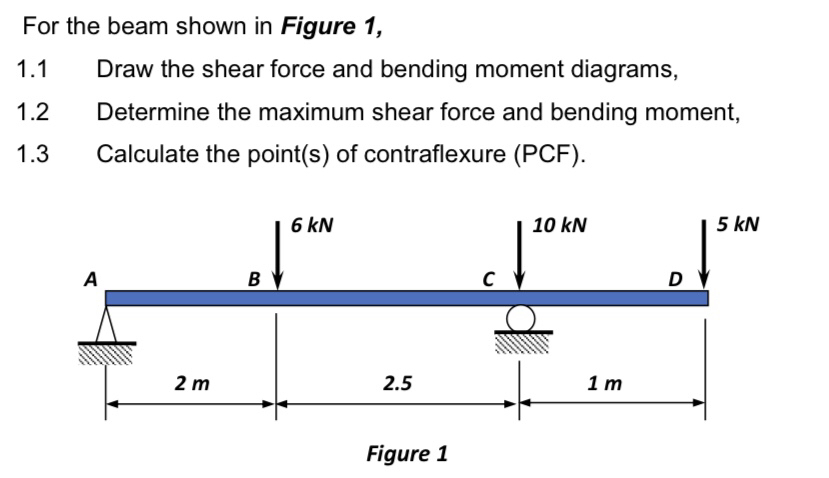

For the beam shown in Figure 1 , 1.1 Draw the shear force and bending moment diagrams, 1.2 Determine the maximum shear force and bending moment, 1.3 Calculate the point(s) of contraflexure (PCF). Figure 1

          For the beam shown in Figure 1 ,
1.1 Draw the shear force and bending moment diagrams,
1.2 Determine the maximum shear force and bending moment,
1.3 Calculate the point(s) of contraflexure (PCF).
Figure 1

Added by Lizzy M.

Vector Mechanics for Engineers: Statics and Dynamics

Ferdinand P. Beer, E. Russell Johnston,… 11th Edition

Chapter 7

Instant Answer

Solved by Expert Vishal Gupta

Step 1

1 To draw the shear force and bending moment diagrams, we need to first determine the reactions at the supports. Since the beam is simply supported, the reactions at A and B are equal and half of the total load, which is 10 kN. RA = RB = 10/2 = 5 kN Show more…
