Question

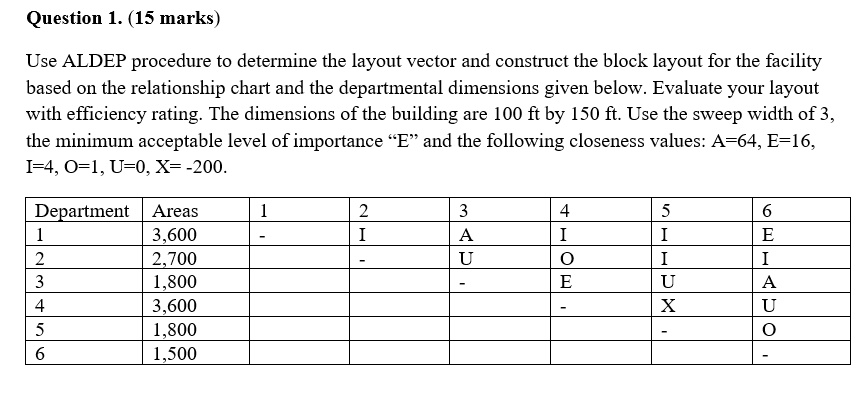

Question 1. (15 marks) Use ALDEP procedure to determine the layout vector and construct the block layout for the facility based on the relationship chart and the departmental dimensions given below. Evaluate your layout with efficiency rating. The dimensions of the building are 100 ft by 150 ft. Use the sweep width of 3, the minimum acceptable level of importance ?E? and the following closeness values: A=64, E=16, I=4, O=1, U=0, X= -200. Department | Areas | 1 | 2 | 3 | 4 | 5 | 6 1 | 3,600 | - | I | A | I | I | E 2 | 2,700 | | - | U | O | I | I 3 | 1,800 | | | - | E | U | A 4 | 3,600 | | | | - | X | U 5 | 1,800 | | | | | - | O 6 | 1,500 | | | | | | -

          Question 1. (15 marks)

Use ALDEP procedure to determine the layout vector and construct the block layout for the facility based on the relationship chart and the departmental dimensions given below. Evaluate your layout with efficiency rating. The dimensions of the building are 100 ft by 150 ft. Use the sweep width of 3, the minimum acceptable level of importance ?E? and the following closeness values: A=64, E=16, I=4, O=1, U=0, X= -200.

Department | Areas | 1 | 2 | 3 | 4 | 5 | 6
1 | 3,600 | - | I | A | I | I | E
2 | 2,700 | | - | U | O | I | I
3 | 1,800 | | | - | E | U | A
4 | 3,600 | | | | - | X | U
5 | 1,800 | | | | | - | O
6 | 1,500 | | | | | | -

Question 1. (15 marks)

Use ALDEP procedure to determine the layout vector and construct the block layout for the facility based on the relationship chart and the departmental dimensions given below. Evaluate your layout with efficiency rating. The dimensions of the building are 100 ft by 150 ft. Use the sweep width of 3, the minimum acceptable level of importance ?E? and the following closeness values: A=64, E=16, I=4, O=1, U=0, X= -200.

Department | Areas | 1 | 2 | 3 | 4 | 5 | 6
1 | 3,600 | - | I | A | I | I | E
2 | 2,700 | | - | U | O | I | I
3 | 1,800 | | | - | E | U | A
4 | 3,600 | | | | - | X | U
5 | 1,800 | | | | | - | O
6 | 1,500 | | | | | | -
