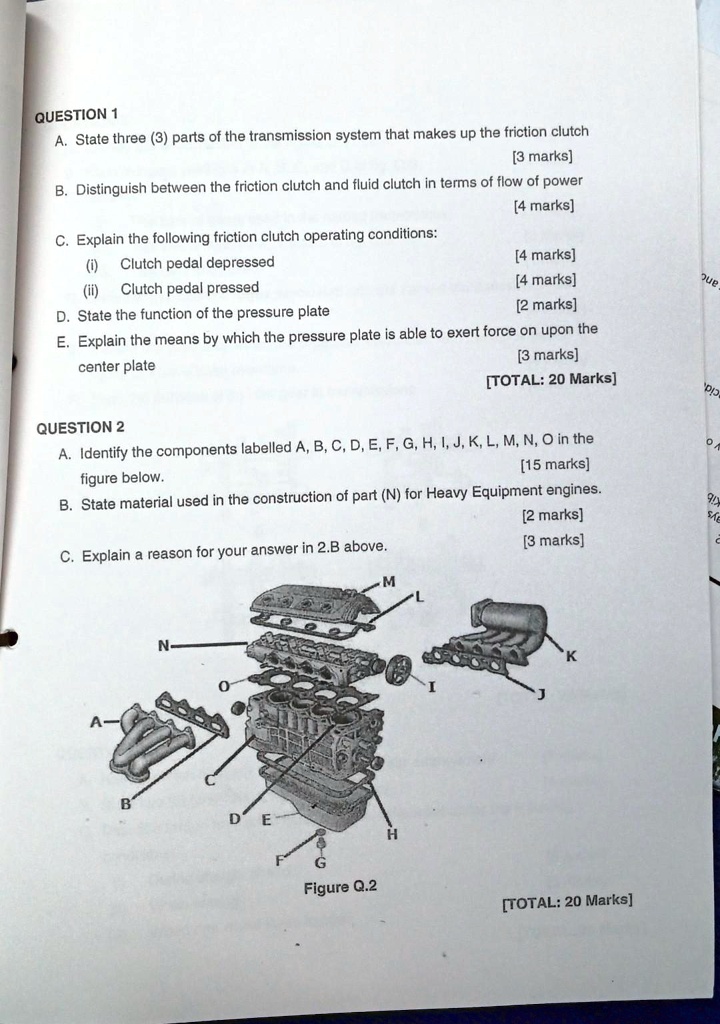

QUESTION 1
A. State three (3) parts of the transmission system that makes up the friction clutch
[3 marks]
B. Distinguish between the friction clutch and fluid clutch in terms of flow of power
[4 marks]
C. Explain the following friction clutch operating conditions:
(i) Clutch pedal depressed [4 marks]
(ii) Clutch pedal pressed [4 marks]
D. State the function of the pressure plate [2 marks]
E. Explain the means by which the pressure plate is able to exert force on upon the center plate [3 marks]
[TOTAL: 20 Marks]
QUESTION 2
A. Identify the components labelled A, B, C, D, E, F, G, H, I, J, K, L, M, N, O in the figure below. [15 marks]
B. State material used in the construction of part (N) for Heavy Equipment engines. [2 marks]
C. Explain a reason for your answer in 2.B above. [3 marks]
Figure Q.2
[TOTAL: 20 Marks]
