Question 1 6 pts Diagrams below indicate a sample of gas at...

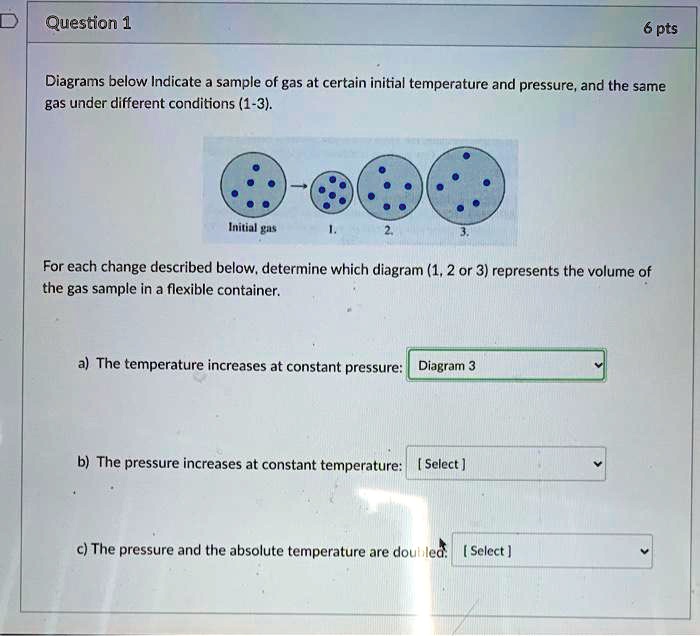

Question 1 6 pts Diagrams below indicate a sample of gas at certain initial temperature and pressure, and the same gas under different conditions (1-3). Initial gas 1. 2. 3. For each change described below, determine which diagram (1, 2 or 3) represents the volume of the gas sample in a flexible container. a) The temperature increases at constant pressure: [Diagram 3] b) The pressure increases at constant temperature: [ Select ] c) The pressure and the absolute temperature are doubled: [ Select ]

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Transcript

00:03 Hi there.

00:04 In this question, we have three different scenarios, and we want to know what happens to the volume of a gas sample.

00:17 Let's look at the first scenario.

00:20 In letter a, the temperature increases at constant pressure.

00:24 Well, this is described by charles law.

00:30 And charles law is the gas law that says when number of moles and pressure are temperature are, i'm sorry, number of moles and pressure are constant, the volume, and the absolute temperature are directly proportional.

00:57 This means that if the temperature increases, then the volume increases.

01:10 And we want to select the drawing that shows a larger volume.

01:14 Well, that would be diagram number three.

01:24 All right, so diagram number three would be what happens when the temperature increases at constant pressure.

01:32 The volume would increase.

01:35 Let's look at letter b.

01:37 In letter b, the pressure increases at constant temperature.

01:43 So this was going to be boyle's law.

01:47 Boyle's law describes the relationship between pressure and volume when the number of moles and temperature are constant.

01:55 Boyle's law says that pressure and volume will be inversely proportional...
