QUESTION 12 Calculate the power dissipated by the 2 Ohm resistor in the circuit shown below. 12 V R1 4 ? R2 4 ? R3 2 ? a. 24 W b. 72 W c. 12 W d. 144 W QUESTION 13 A 500-W device is connected to a 100-V power source. What current flows through this source?
Added by Roberto C.
Close
Step 1
Given resistances: R1 = 4 Ω, R2 = 4 Ω, R3 = 2 Ω 1/Rp = 1/R1 + 1/R2 + 1/R3 1/Rp = 1/4 + 1/4 + 1/2 1/Rp = 1/4 + 1/2 1/Rp = 3/4 Rp = 4/3 Ω Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 75 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Calculate the power dissipated by the 2 Ohm resistor in the circuit shown below: R1 = 4 Ω R2 = 4 Ω R3 = 2 Ω a) 24 W b) 72 W c) 12 W d) 144 W
Adi S.

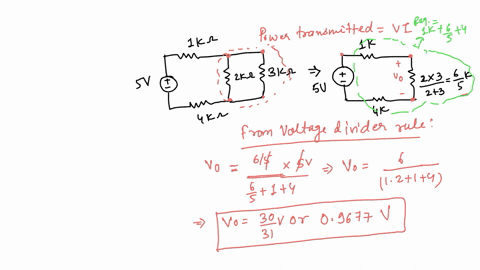

Calculate the power transmitted to the resistance of 2 kΩ in the circuit shown in the figure.
Aparna S.

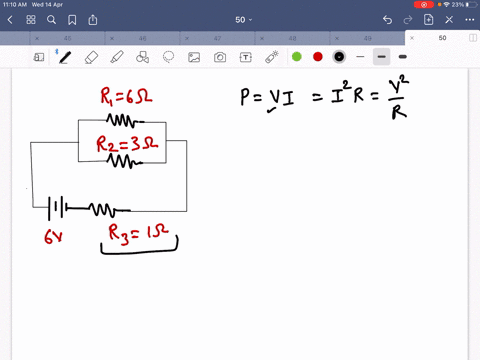

Use the following circuit diagram to answer questions 48 to 50. How much power is dissipated in the 1$\Omega$ resistor each second? (A) 4 $\mathrm{W}$ (B) 10 $\mathrm{W}$ (C) 16 $\mathrm{W}$ (D) 20 $\mathrm{W}$ (E) 32 $\mathrm{W}$
