Question 13 0.1 pts Select all input combinations that will cause the valid output bit of a 4x2 priority encoder to be 1: ? 0000 ? 0001 ? 0010 ? 0011 ? 0100 ? 0101 ? 0110 ? 0111 ? 1000 ? 1001 ? 1010 ? 1011 ? 1100 ? 1101 ? 1110
Added by Justin C.
Close
Step 1
The priority encoder outputs the binary representation of the highest priority input that is asserted. The priority is assigned based on the order of the inputs, with the highest priority input being the first input and the lowest priority input being the last Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 98 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

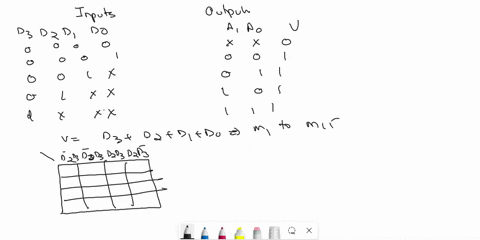

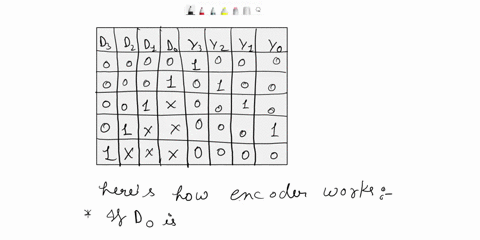

7. Design a four-input priority encoder with inputs D0, D1, D2, D3 and outputs x y, V with V indicating a valid input (V=0 when all the inputs are zero else V=1) but with input D0 having the highest priority and input D3 the lowest priority as shown in Table 1 below. Table1 Priority encoder Inputs Outputs D3 D2 D1 D0 x y V 0 0 0 0 x x 0 x x x 1 0 0 1 x x 1 0 0 1 1 x 1 0 0 1 0 1 1 0 0 0 1 1 1
Design a 4-input priority encoder with inputs and outputs as in Table 3-6, but with the truth table representing the case in which input D0 has the highest priority and input D3 the lowest priority.
