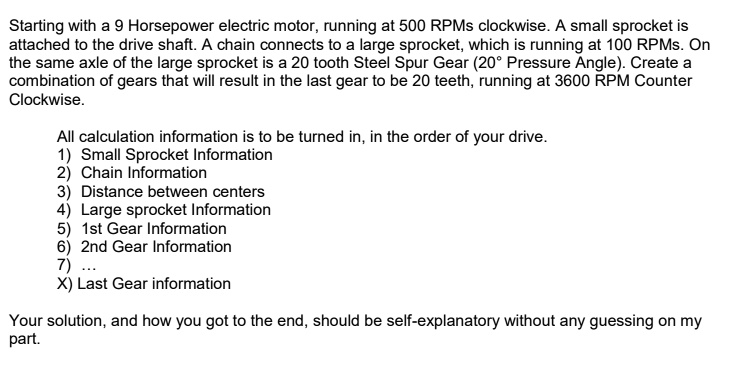

Starting with a 9 Horsepower electric motor, running at 500 RPMs clockwise. A small sprocket is attached to the drive shaft. A chain connects to a large sprocket, which is running at 100 RPMs. On the same axle of the large sprocket is a 20 tooth Steel Spur Gear (20° Pressure Angle). Create a combination of gears that will result in the last gear to be 20 teeth, running at 3600 RPM Counter Clockwise.
All calculation information is to be turned in, in the order of your drive.
1) Small Sprocket Information
2) Chain Information
3) Distance between centers
4) Large sprocket Information
5) 1st Gear Information
6) 2nd Gear Information
7)
X) Last Gear information
Your solution, and how you got to the end, should be self-explanatory without any guessing on my part.
