Question 19 6.5 pt Five capacitors, each having capacitance C, are connected as shown to the right. The equivalent capacitance of this configuration is ? (3/5) C ? (3/2) C ? (4/3) C ? (3/8) C ? (3/4) C
Added by Jose Ignacio A.
Close
Step 1
First, let's label the capacitors as C1, C2, C3, C4, and C5 from left to right. Show more…
Show all steps
Your feedback will help us improve your experience
Karan Soni and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

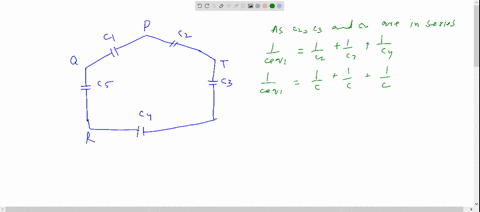

Five capacitors each of capacitance value $C$ are connected as shown in the figure. The ratio of capacitance between $P$ and $R$ and the capacitance between $P$ and $Q$ is (a) $3: 1$ (b) $5: 2$ (c) $2: 3$ (d) $1: 1$

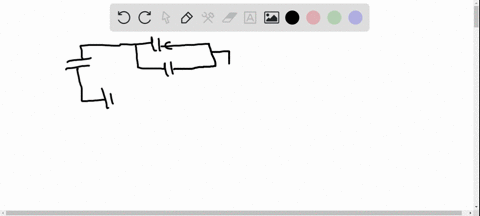

In the circuit shown in the figure, the capacitance for each capacitor is $C$. The equivalent capacitance for these three capacitors is a) $\frac{1}{3} C$. d) $\frac{3}{5} C$. b) $\frac{2}{3} C$. e) $C$. c) $\frac{2}{5} C$. f) $\frac{5}{3} C$.
Four capacitors are connected as shown below: Given C1=7 F; C2=5 F; C3=3 F; C4=6 F Find the equivalent capacitance between points a and b (in F).
