2: The Warren truss loaded as shown in the figure is supported by a roller at C and a hinge at G

Question

Eric Mockensturm · Answer

In this problem, we&#x27;re going to ask to look at this trust here, but now we want to figure out th

Eric Mockensturm · Answer

In this case, we&#x27;re given this tower structure here. And for problem 61 and 62, we&#x27;re asked to f

Eric Mockensturm · Answer

In problem 63 and 64 we&#x27;re given another truss that looks like this. And we have some external l

Eric Mockensturm · Answer

In problem 64, we want to look at the forces in these members here, so we&#x27;ll make this cut. Okay

Eric Mockensturm · Answer

In this problem, we&#x27;re again given the trust from the previous problem, which is this one. And n

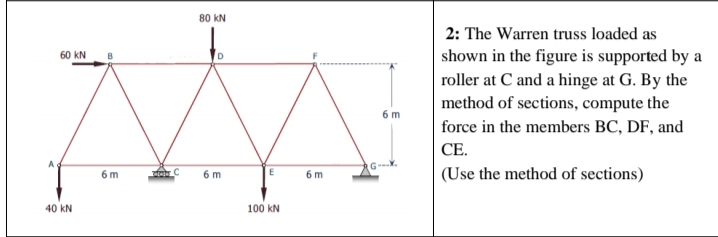

2: The Warren truss loaded as shown in the figure is supported by a roller at \( \mathrm{C} \) and a hinge at \( \mathrm{G} \). By the method of sections, compute the force in the members BC, DF, and CE. (Use the method of sections)
