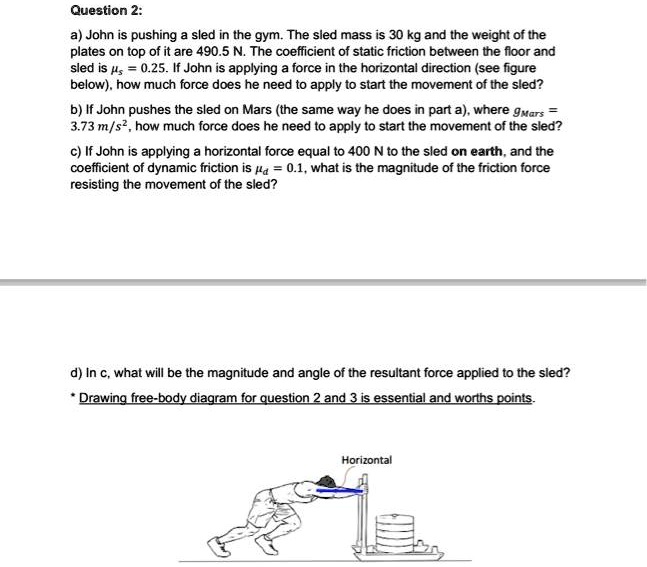

Question 2: a) John is pushing a sled in the gym. The sled mass is 30 kg and the weight of the plates on top of it are 490.5 N. The coefficient of static friction between the floor and sled is ?s = 0.25. If John is applying a force in the horizontal direction (see figure below), how much force does he need to apply to start the movement of the sled? b) If John pushes the sled on Mars (the same way he does in part a), where gMars = 3.73 m/s², how much force does he need to apply to start the movement of the sled? c) If John is applying a horizontal force equal to 400 N to the sled on earth, and the coefficient of dynamic friction is ?d = 0.1, what is the magnitude of the friction force resisting the movement of the sled? d) In c, what will be the magnitude and angle of the resultant force applied to the sled? * Drawing free-body diagram for question 2 and 3 is essential and worths points. Horizontal
Added by Anna C.
Close
Step 1
The weight of the sled is its mass times the acceleration due to gravity (g = 9.8 m/s^2), so it's 30 kg * 9.8 m/s^2 = 294 N. The total weight is then 294 N + 490.5 N = 784.5 N. The force of static friction is the coefficient of static friction times the normal Show more…
Show all steps
Your feedback will help us improve your experience
Chasen Shaw and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

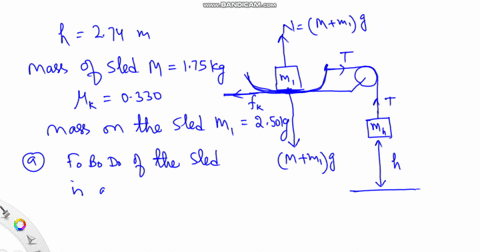

1. A sled of mass 1.75 kg rests on a rough horizontal surface. The coefficient of kinetic friction is known to be 0.330, but the coefficient of static friction is unknown. The sled is attached to a hanging mass over a pulley by a massless string. The bottom of a hanging mass is 2.74 m above the ground. To determine the coefficient of static friction, a 2.50 kg mass is placed on top of the sled, and mass is added until it just begins to move. Remember that g = 9.80 m/s2 . a) Draw a free body diagram for the just the sled while it is at rest with the 2.50 kg mass on top of it and the hanging mass providing a tension force. b) If the sled just moves when mh = 2.64 kg, what is the coefficient of static friction? c) When the 2.50 kg mass is removed, the sled begins sliding and hanging mass descends. What is the magnitude of the acceleration of the system? d) What speed does the sled have when the hanging mass hits the ground?
Vishal G.
A person exerts a force of 150 N on a rope that pulls a sled across a very smooth surface. The rope is oriented 37 degrees above the horizontal. The sled has a total mass of 46 kg. The sled starts at rest and moves for 10 m. a) Determine the acceleration of the sled. b) Determine the normal force exerted by the surface on the sled. c) Determine the time taken for the sled to move 10 m. d) Determine the speed of the sled after moving for 10 m.

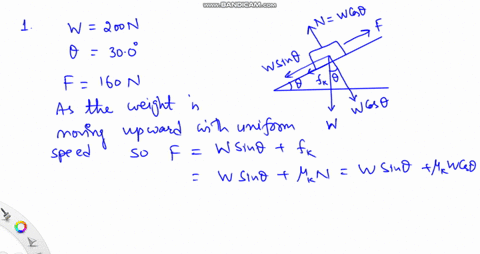

Inclined Plane Review Problems Show all formulas, calculations and freebody diagrams for each problem! (1) A force of 160. N parallel to an inclined plane is required to move a 200. N weight up the inclined plane with a constant velocity. Find the coefficient of sliding friction if the plane is inclined at 30.0 degrees. (2) An inclined plane has a slope of 40.0 degrees. An object with a mass of 170. kg is sitting on the top of the incline. If the coefficient of kinetic friction between the mass and the plane is 0.235, find the acceleration of the object at the bottom of the incline. (3) A 20 000-N car is parked on an incline that makes an angle of 30° with the horizontal. If the maximum force the brakes can withstand is 12000 N, will the car remain at rest? (4) A 65 N boy sits on a sled weighing 52 N on a horizontal surface. The coefficient of static friction between the sled and the snow is 0.12. The coefficient of kinetic friction is .09 a. What is the magnitude of the static frictional force? b. The sled is pulled at constant speed up an incline of 30°. What is the magnitude of the force needed to pull the sled up the hill?
