Figure. VY ? Y 2 3E 38 Generator 30 MVA 20 MVA 11/22 kV 11 kV X = X = X = 0.12 pu X = X = 0.1 pu X = 0.15 pu Xn = 0.25 pu 4 1 + j5 10 MW 20 MVA 22/1.1 kV X = X = X = 0.05 pu
Added by Consuelo S.
Close
Step 1
The figure represents a power system diagram with various components such as generators, transformers, and loads. Show more…
Show all steps
Your feedback will help us improve your experience
Ronald Prasad and 81 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 100 MVA, 20 kV alternator has X 1 = X 2 = 0.20 pu and X 0 = 0.05 pu. The neutral of the generator is grounded through a reactor. Find the ohmic value of reactor to limit the current for a single line to ground fault equal to the current for a three-phase fault.
Prem B.

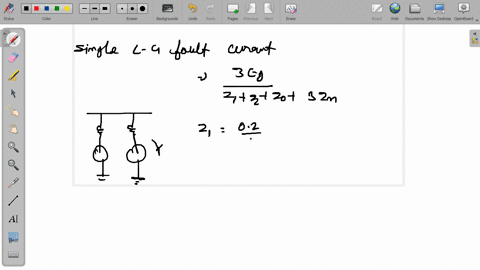

A 25 MVA, 11 kV, 3-phase, 60 Hz, generator has its neutral grounded through a 4% reactor. It is having isolated neutral. Each generator has X 1 = 20%, X 2 = 20% and X go = 8%. If a single line-to-ground fault occurs at the common busbars with the generators unloaded at rated voltage, the fault current will be
For the system shown in Figure 2, draw an impedance diagram in per unit by choosing 30 MVA to be the base power and 6.6 kV as the base voltage for the circuit of generator G1. The data are given as follows: Generator G1: 25 MVA, 6.6 kV, X = 0.20 pu Generator G2: 15 MVA, 6.6 kV, X = 0.15 pu Generator G3: 30 MVA, 13.2 kV, X = 0.15 pu Transformer T1: 30 MVA, 6.6/115 kV, X = 0.10 pu Transformer T2: 15 MVA, 6.6/115 kV, X = 0.10 pu Transformer T3: Single-phase units each rated 10 MVA, 6.9/69 kV, X = 0.10 pu
