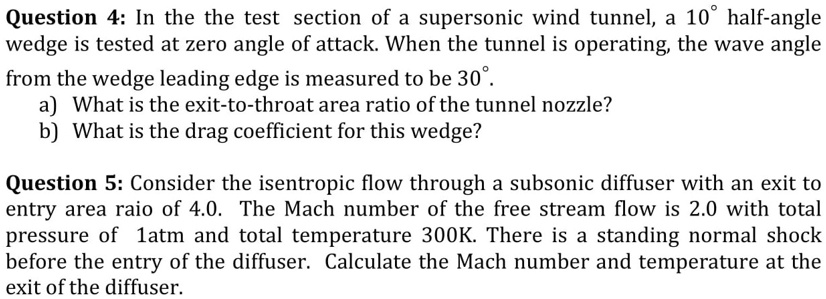

Question 4: In the the test section of a supersonic wind tunnel, a 10° half-angle wedge is tested at zero angle of attack. When the tunnel is operating, the wave angle from the wedge leading edge is measured to be 30°. a) What is the exit-to-throat area ratio of the tunnel nozzle? b) What is the drag coefficient for this wedge? Question 5: Consider the isentropic flow through a subsonic diffuser with an exit to entry area raio of 4.0. The Mach number of the free stream flow is 2.0 with total pressure of 1atm and total temperature 300K. There is a standing normal shock before the entry of the diffuser. Calculate the Mach number and temperature at the exit of the diffuser.
Added by Harold F.
Close
Step 1
M=2.0, T=300K Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 51 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supreeta N.
A supersonic wind tunnel is to be operated at $M=2.2$ in the test section. Upstream from the test section, the nozzle throat area is $0.07 \mathrm{m}^{2} .$ Air is supplied at stagnation conditions of $500 \mathrm{K}$ and $1.0 \mathrm{MPa}$ (abs). At one flow condition, while the tunnel is being brought up to speed, a normal shock stands at the nozzle exit plane. The flow is steady. For this starting condition, immediately downstream from the shock find (a) the Mach number, (b) the static pressure, (c) the stagnation pressure, and (d) the minimum area theoretically possible for the second throat downstream from the test section. On a $T s$ diagram show static and stagnation state points and the process path.
