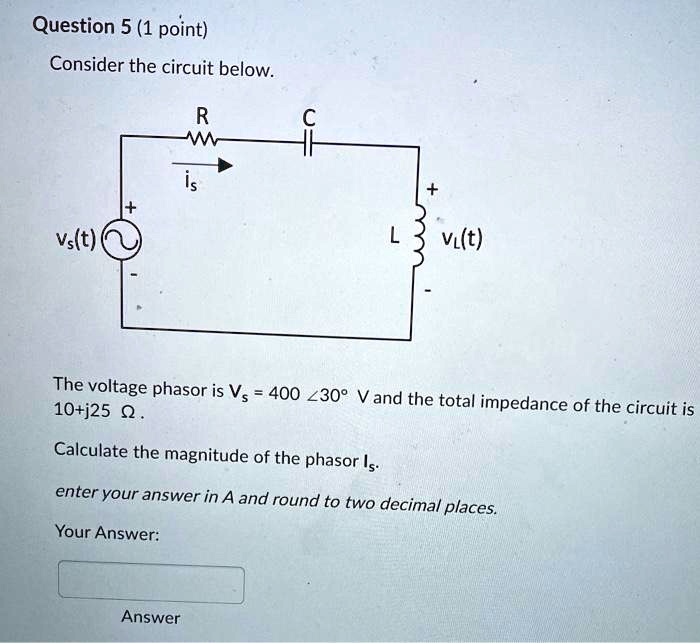

Consider the circuit below. The voltage phasor is Vs = 400 ?30 V and the total impedance of the circuit is 10 + j25 ?. Calculate the magnitude of the phasor Is. enter your answer in A and round to two decimal places.
Added by Kayla H.
Close
Step 1
Step 1: Calculate the impedance of the circuit using the given values: Z = 40 + j20 + j25 Z = 40 + j45 Show more…
Show all steps
