          Question 6

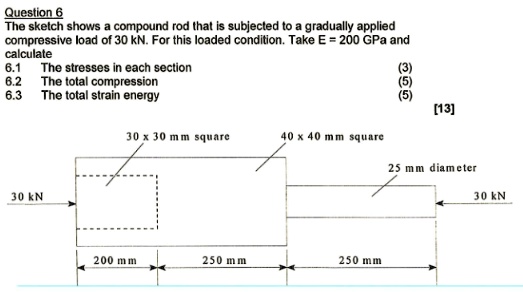

The sketch shows a compound rod that is subjected to a gradually applied compressive load of 30 kN. For this loaded condition. Take E = 200 GPa and calculate
6.1 The stresses in each section
6.2 The total compression
6.3 The total strain energy
(3)
(5)
(5)
[13]
30 x 30 mm square
40 x 40 mm square
30 kN
200 mm
250 mm
250 mm
25 mm diameter
30 kN

question 6 the sketch shows a compound rod that is subjected to a gradually applied compressive load of 30 kn for this loaded condition take e 200 gpa and calculate 61 the stresses in each s 91721

Added by Marc T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

12/19/2022

Step 1

Identify the sections and their properties:** The compound rod consists of three sections: * **Section 1 (Leftmost):** * Shape: Square * Dimensions: $30 \text{ mm} \times 30 \text{ mm}$ * Length ($L_1$): $200 \text{ mm}$ * **Section 2 Show more…
