The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure. 12.0 ? 4.00 ? a — — 5.00 ? — — b 6.00 ? 8.00 ? (a) What is the equivalent resistance (in ?) of the entire network between points a and b? ? (b) A battery with a potential difference of 34 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor? 12.0 ? 6.00 ? 5.00 ? 4.00 ? 8.00 ?

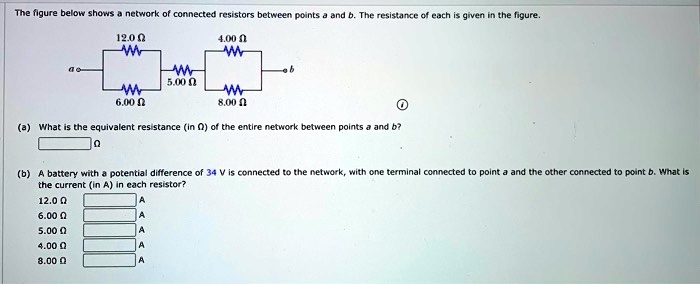

          The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure.
12.0 ?
4.00 ?
a — — 5.00 ? — — b
6.00 ?
8.00 ?
(a) What is the equivalent resistance (in ?) of the entire network between points a and b?
?
(b) A battery with a potential difference of 34 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor?
12.0 ?
6.00 ?
5.00 ?
4.00 ?
8.00 ?

The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure.
12.0 ?
4.00 ?
a — — 5.00 ? — — b
6.00 ?
8.00 ?
(a) What is the equivalent resistance (in ?) of the entire network between points a and b?
?
(b) A battery with a potential difference of 34 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor?
12.0 ?
6.00 ?
5.00 ?
4.00 ?
8.00 ?
