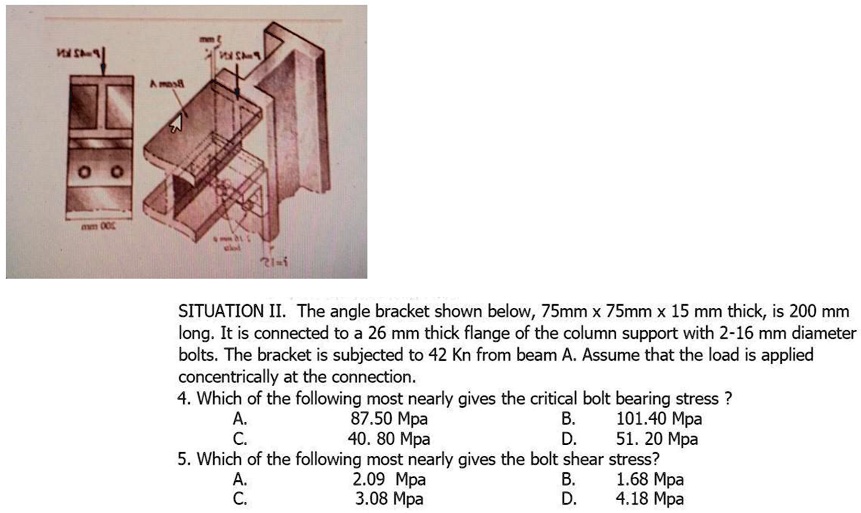

SITUATION II. The angle bracket shown below, 75mm x 75mm x 15 mm thick, is 200 mm long. It is connected to a 26 mm thick flange of the column support with 2-16 mm diameter bolts. The bracket is subjected to 42 Kn from beam A. Assume that the load is applied concentrically at the connection. 4. Which of the following most nearly gives the critical bolt bearing stress ? A. 87.50 Mpa B. 101.40 Mpa C. 40. 80 Mpa D. 51. 20 Mpa 5. Which of the following most nearly gives the bolt shear stress? A. 2.09 Mpa B. 1.68 Mpa C. 3.08 Mpa D. 4.18 Mpa
Added by Patty T.
Close
Step 1
- The bearing stress (\(\sigma_b\)) is given by the formula: \[ \sigma_b = \frac{P}{d \cdot t} \] where \(P\) is the load, \(d\) is the bolt diameter, and \(t\) is the thickness of the material in contact with the bolt. Show more…
Show all steps
