Question

(Sketch) Magnetic field lines of two bar magnets (2 pts) Before doing this problem, I recommend that you need to watch the video (two bar magnets) linked on Moodle. Sketch the magnetic field lines for two bar magnets presented in the figure below. Be sure to include the direction of the magnetic field lines using arrow heads. N S N S

          (Sketch) Magnetic field lines of two bar magnets (2 pts)
Before doing this problem, I recommend that you need to watch the video
(two bar magnets) linked on Moodle. Sketch the magnetic field lines for two
bar magnets presented in the figure below. Be sure to include the direction
of the magnetic field lines using arrow heads.
N
S
N
S

(Sketch) Magnetic field lines of two bar magnets (2 pts)
Before doing this problem, I recommend that you need to watch the video
(two bar magnets) linked on Moodle. Sketch the magnetic field lines for two
bar magnets presented in the figure below. Be sure to include the direction
of the magnetic field lines using arrow heads.
N
S
N
S

Added by Jim P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Shaiju T

06/02/2022

Step 1

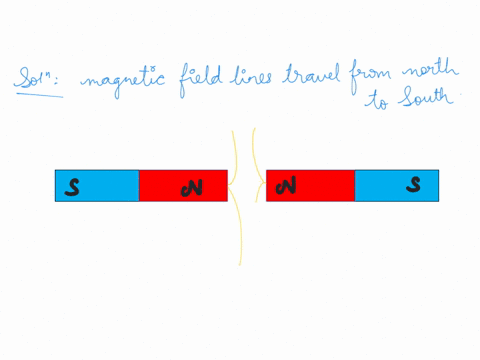

They are placed such that their opposite poles are facing each other, with one magnet having its North (N) pole facing the South (S) pole of the other magnet. This setup will influence the direction in which the magnetic field lines will flow. Show more…
