Sketch some magnetic field lines for two identical bar...

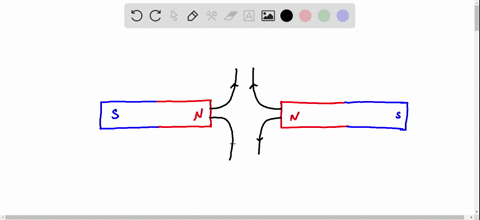

Sketch some magnetic field lines for two identical bar magnets in the given configuration. Be sure to show field lines inside the magnets as well as outside.
$$
\begin{array}{|l|l|l|l|l|}
\hline \mathrm{N} & \mathrm{S} & \mathrm{N} & \mathrm{S} \\
\hline
\end{array}
$$

Key Concepts

Magnetic Field Lines

Magnetic field lines provide a visual representation of the strength and direction of a magnetic field. They emanate from the north pole and enter the south pole of a magnet, illustrating how magnetic forces propagate through space. The density and curvature of these lines indicate the field's intensity and spatial variation, making them a useful tool for conceptualizing the interactions between magnetic entities.

Magnetic Dipoles

A magnetic dipole is a fundamental concept in magnetism, characterized by two poles – a north and a south pole – separated by a small distance. This model explains how magnets generate fields and interact with one another. The dipole moment, a vector quantity, quantifies the strength and orientation of a magnet, which is central to understanding both the internal structure of magnetic materials and their external fields.

Bar Magnets

Bar magnets are common examples of magnetic dipoles, typically having clear north and south poles. They are used to demonstrate how magnetic fields exist not only in the surrounding space but also within the material of the magnet itself. The classic dipole model of a bar magnet helps in explaining the distribution of magnetic field lines inside the magnet, where the field reverses direction compared to the field outside.

Internal vs. External Magnetic Fields

Magnetic fields behave differently inside and outside a magnet. Outside, the field lines emerge from the north pole and curve to enter the south pole, showing the influence of the magnet on its surroundings. Inside the magnet, the lines complete the circuit, moving from the south pole back to the north pole. This continuous loop emphasizes the conservative nature of magnetic fields and the unity of the magnetic circuit within and around the magnet.
