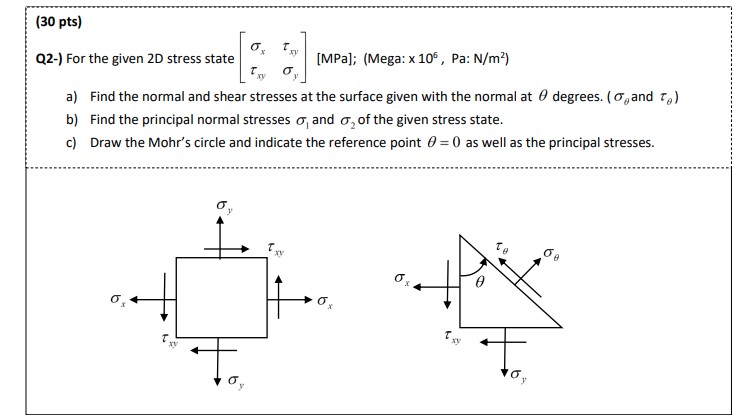

Q2-) For the given 2D stress state [sigma_{x} au_{xy}; au_{xy} sigma_{y}] [MPa]; (Mega: x 10^6, Pa: N/m^2) a) Find the normal and shear stresses at the surface given with the normal at ? degrees. (?? and ??) b) Find the principal normal stresses ?_1 and ?_2 of the given stress state. c) Draw the Mohr's circle and indicate the reference point ? = 0 as well as the principal stresses.
Added by Ebu Cahil H.
Close
Step 1
a) To find the normal and shear stresses at the surface given with the normal at \( \theta \) degrees, we can use the following equations: \( \sigma_{\theta} = \frac{\sigma_x + \sigma_y}{2} + \frac{\sigma_x - \sigma_y}{2} \cos(2\theta) - \tau_{xy} \sin(2\theta) Show more…
Show all steps
Your feedback will help us improve your experience
Areen Dabadghav and 58 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Draw the Mohr's Circle of Stress for the given state of stress at a point (5 pts) and determine the following: (a) Principal Stresses – 4 pts (b) Maximum In-Plane Shear Stress – 2 pts (c) Normal and Shear Stresses on the plane defined by x'-axis (oriented as shown) – 4 pts GIVEN: Αx = +150 Mpa Αy = +100 Mpa Αxy = 75 Mpa Θ = 30 degrees (x'-axis orientation)
Sri K.

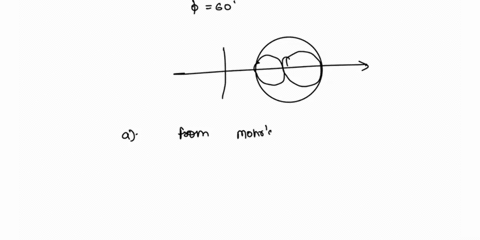

The principal stresses at a point in a structural member are ́σ1 = 20 MPa, σ2 = 15 MPa, and σ3 = -10 MPa. Use Mohr's circle to determine the normal and shear stresses on an inclined plane defined by θ = 45° and ϕ = 60°.
