In this problem we have to find the linear programming problem by graphical method.
00:07

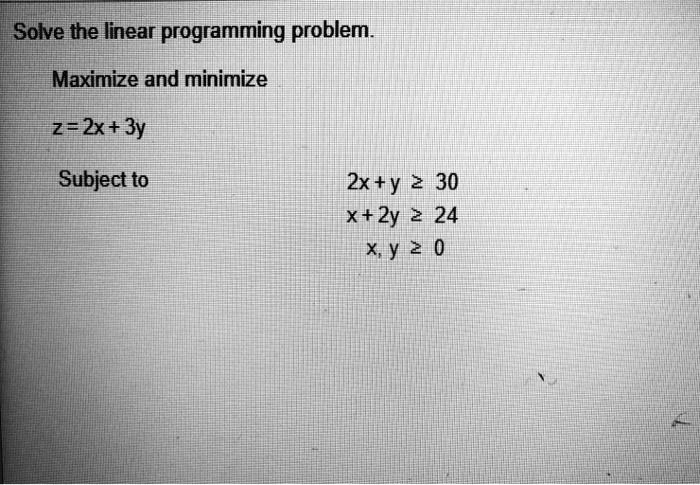

The objective function is given as objective function is z is equal to 2x plus 3y subject to the constraints.
00:19
2x plus y greater than or equal to 30 x plus 2y greater than or equal to 24 and x comma y greater than or equal to 0.
00:30
So first we have to solve this by graphical method.
00:33
So first we will consider the first constraint that is 2x plus y greater than or equal to 30.
00:39
We will make it as an equality constraint.
00:41
So if we take x equal to 0, then y will be 30.
00:47
And when we take y equal to 0, x will be 15, right? then consider the second constraint, x plus 2y equal to 24 x, y.
00:58
So we will take x as 0.
01:00
So y is equal to 12.
01:02
When we are taking y equal to 0, then x we may get it as 24.
01:06
Okay, so now we have to plot these values.
01:10
Draw x -axis and y -axis, x -axis, x -axis, and the units we can take it as 5, 10, 15, etc.
01:20
And in y -axis also, we will consider the same.
01:24
5, 10, 15, 20, 25, 30, 20, 25, 30, etc.
01:32
So now we will plot the points first one 030.
01:37
So here we may get it.
01:38
Next one 15 .0.
01:40
Now we have to join these two points and it is given.
01:44
This line is 2x plus y greater than equal to 30 and the constraint is greater than or equal to constraint.
01:53
So we are considering this portion right.
01:56
So above the line we are considering.
01:58
Next one x plus 2y greater than or equal to 24...
