00:01
Our question is the gas turbine power plant operates in a modified bedron cycle with the overall pressure ratio of 8.
00:07
Air enters the compressor at 0 degree centigrade and 100kcal.
00:12
The maximum cycle temperature is 1500 kelvin.
00:16
The compressor in the turbines are isotropic, the high pressure turbine develops just enough power to run the compressor.
00:21
Assume the constant properties of air at 300 kelvin with cv, cb and r.
00:27

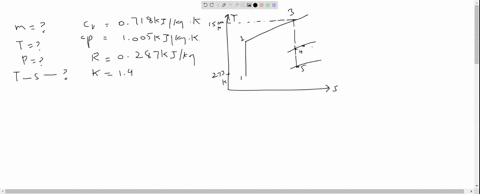

You have to sketch the tns diagram in this question.
00:30
The amount of temperature and pressure at state 4, the exit of high pressure turbine, the net power output is 200 megawalt.
00:39
Determine the mass flow rate of the air into the compressor in kilo kg per second.
00:45
We have to find the mass flow rate, temperature and pressure at the stage 4 and we have to draw the tns ttih.
01:00
The properties of air, net 300 kelvin is given as.
01:12
Cb is equal to 0 .718 kilojou per kg .g .g .p is equal to 1 .005 killer joul per kg...
