Stress element The stresses on an element are shown in the figure. Determine the magnitude of the shear stress \boxed{} (kPa) on the element oriented 40° counter-clockwise with respect to the original element (rounding to two decimal places).
Added by Jerry T.
Close
Step 1
First, let's identify the element in the figure. It appears to be a rectangular element with sides labeled as "a" and "b". Show more…
Show all steps
Your feedback will help us improve your experience
Karan Soni and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.

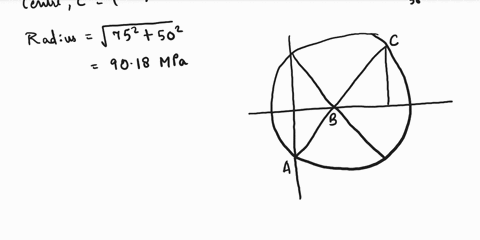

An element in a strained body is subjected to a tensile stress of 150 MPa and a shear stress of 50 MPa, tending to rotate the element in an anticlockwise direction. Determine: (i) The magnitude of the normal and shear stresses on a section inclined at 40° with the tensile stress. (ii) The magnitude and direction of the maximum shear stress that can exist on the element.
Adi S.
Determine the normal stress and shear stress acting on the inclined plane AB. Sketch the result on the sectioned element. 50 kPa
