For the circuit shown find the voltage across each circuit element and the total current in the circuit.\ Express your answers as phasors.\ $v(t)$\ 6$\Omega$ 120$mH$\ $2.5 \times 10^{-3} F$\ $v(t) = 10 \cos 100t$
Added by Bobby B.
Close
Step 1
The impedance of a resistor is equal to its resistance (Z_R = R), the impedance of an inductor is equal to jωL (Z_L = jωL), and the impedance of a capacitor is equal to 1/(jωC) (Z_C = 1/(jωC)). Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 95 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit shown in Fig. $36 , V = V _ { 0 } \sin \omega t .$ Calculate the current in each element of the circuit, as well as the total impedance. [Hint: Try a trial solution of the form $I = I _ { 0 } \sin ( \omega t + \phi )$ for the current leaving the source.]
Calculate the values of three currents in the circuit shown in Fig. 1. Assume Vbe=0V, Vcc=10V, Rc=2kΩ, Rb=1MΩ, β=100.
Sri K.

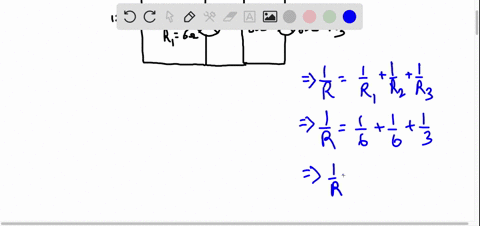

12.19 Determine the total resistance and the current flow in each branch for the circuit shown in the accompanying figure. Ry = 6 Ω Rz = 3 Ω Rz = 6 Ω 12V
